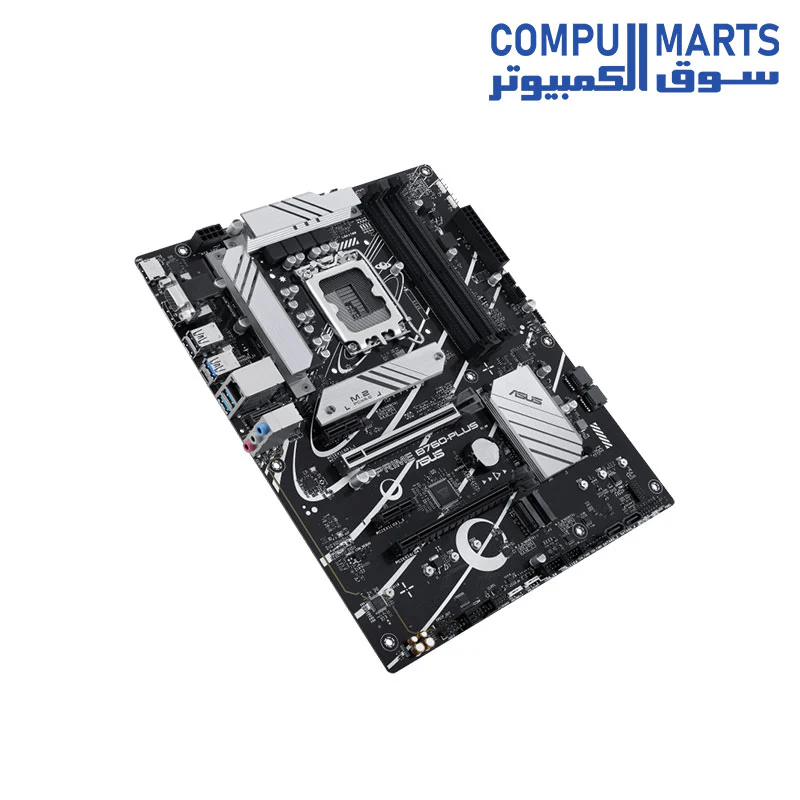

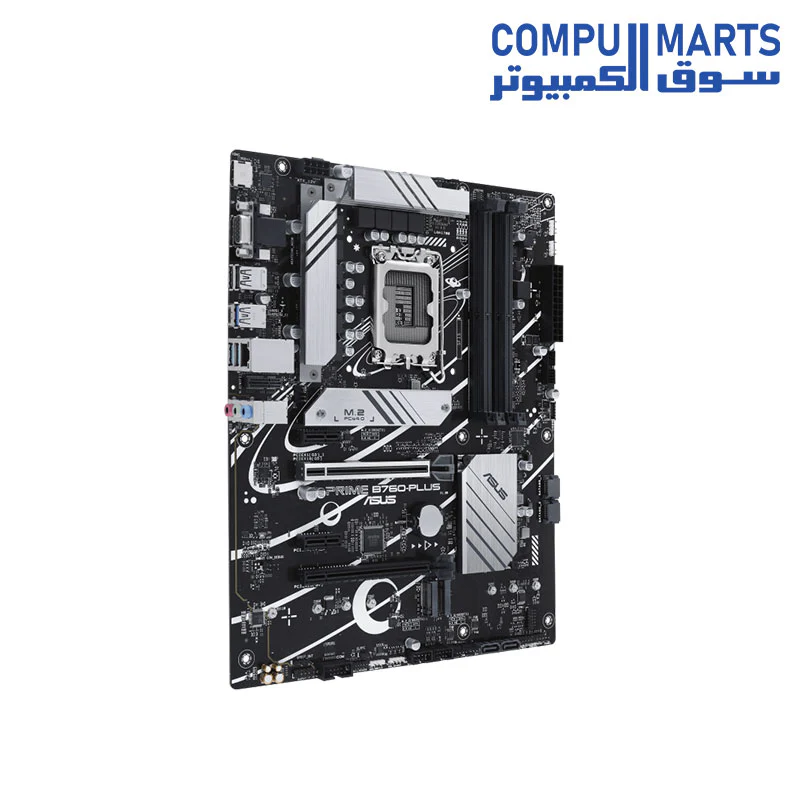

ASUS Prime B760-PLUS Intel DDR5 LGA 1700 ATX motherboard
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB DDR5 (Up to 7200+ MHz OC), Dual Channel, OptiMem II |
| Graphics Output | 1 x HDMI™ port, 1 x DisplayPort, 1 x VGA port |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (2x PCIe 4.0 x4, 1x PCIe 4.0 x2) & 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless | Vertical M.2 slot only (Key E, CNVi & PCIe) - *Wi-Fi module sold separately |
| Rear USB | 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Front USB | 1 x USB 3.2 Gen 1 (Type-C support), 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Premium Capacitors, Audio Shielding |
| Internal I/O | Thunderbolt™ (USB4) header, 3x Addressable Gen 2 headers, 1x Aura RGB header |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-LED Core/Q-Slot), VRM & M.2 Heatsinks |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
$40.65
Original: $135.51
-70%ASUS Prime B760-PLUS Intel DDR5 LGA 1700 ATX motherboard—
$135.51
$40.65
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB DDR5 (Up to 7200+ MHz OC), Dual Channel, OptiMem II |
| Graphics Output | 1 x HDMI™ port, 1 x DisplayPort, 1 x VGA port |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (2x PCIe 4.0 x4, 1x PCIe 4.0 x2) & 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless | Vertical M.2 slot only (Key E, CNVi & PCIe) - *Wi-Fi module sold separately |
| Rear USB | 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Front USB | 1 x USB 3.2 Gen 1 (Type-C support), 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Premium Capacitors, Audio Shielding |
| Internal I/O | Thunderbolt™ (USB4) header, 3x Addressable Gen 2 headers, 1x Aura RGB header |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-LED Core/Q-Slot), VRM & M.2 Heatsinks |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
