EK Nucleus CR360 Dark Aio Liquid Cpu Cooler

EK Nucleus CR360 Dark Aio Liquid Cpu Cooler

• Universally Compatible: All EK-Nucleus AIOs have a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets.

• Rotatable Pump Top: The top allows you to re-orient the EK badge no matter in which direction the cooler is installed. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.

• New Positioning of Rotary Fittings: The new EK-Nucleus AIO CR360 Dark comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The improved position of rotary fittings allows the EK-Nucleus AIO to be installed in even the tightest spaces.

• Daisy-chainable Fans: To reduce cable clutter and the number of headers that need to be utilized on the motherboard or fan controller, EK-Loop FPT fans allow daisy-chaining.

• HIGH-STATIC PRESSURE FPT FANS – FPT series fans aim to succeed the EK-Vardar fans completely as they improve upon many aspects while maintaining focus on excellent radiator performance.

• Radiator Dimensions:

• 400 x 124 x 27 mm

• Radiator Material:

• Aluminum

• Fan Compatibility:

• 120 mm

• Pump Unit Dimensions:

• 82.3 x 69.2 x 61.6 mm

• Pump Unit Material:

• ABS housing, ABS top ring

• Pump Speed Range:

• 3100 RPM ± 10%

• Pump PWM Range:

• 20 – 100%

• Tubing Material:

• Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

• Tubing Length:

• 400 mm

• Fan Dimensions:

• 120 x 120 x 25mm

• Fan Speed Range:

• 550 – 2300 ± 10%

• Fan Noise Level:

• 36 dB (at maximum speed)

• Fan Air Flow:

• 72 CFM = 122,33 m³/h (at maximum speed)

• System Requirements:

• 4-Pin PWM Header for pump and fan operation

• Enclosed:

• EK-Nucleus AIO CR360 Dark unit

• EK-FPT FAN 120 – Black Full Pressure Technology Fan (3x)

• Mounting Kit

• User Manual

• Compatible CPU Sockets:

• Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700

• AMD Socket: AM4, AM5

• The EK-Nucleus AIO CR360 Dark is an all-in-one liquid cooling solution offering a pitch-black cooler without any RGB. It is designed to fit most of the popular cases on the market today and features a triple fan setup with a slim 360mm radiator. Compatible with most modern processors, it is also ready for the next-gen Intel socket and AMD socket AM5.

• Rotatable Pump Top

• The top allows you to re-orient the EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.

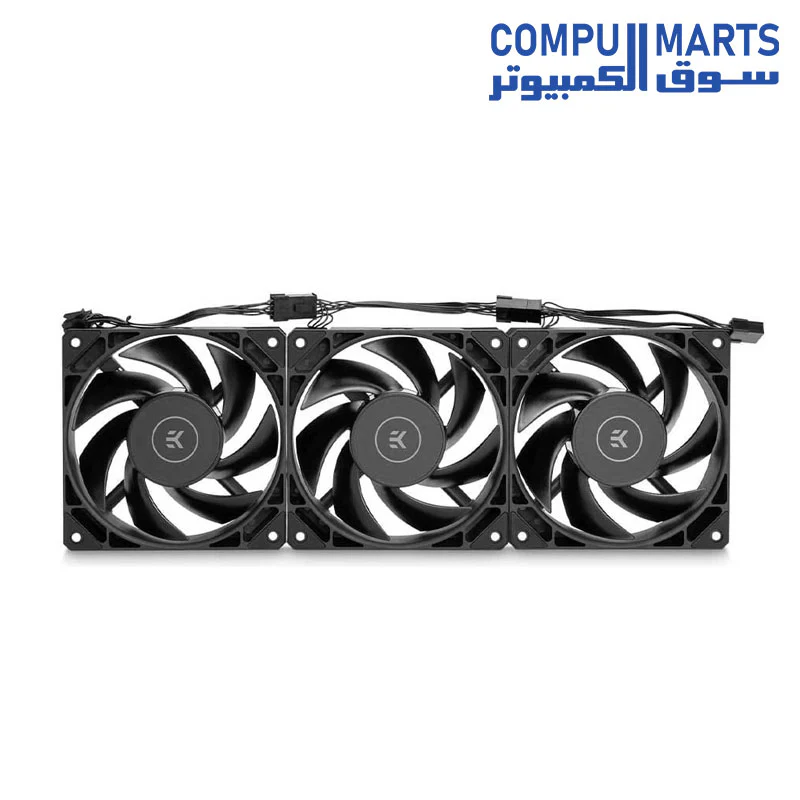

• EK-Loop FPT Fans

• EK-Loop Fan FPT 120 is a 120mm high-static pressure computer cooling fan designed and built primarily for the highest-performance computer liquid cooling systems. FPT fans feature a full-frame design that prevents air from escaping outside the frame, thus achieving better static pressure.

• Dense Microfin Copper Coldplate

• The copper coldplate that touches the CPU IHS is made of copper to enhance the thermal transferring characteristics. It has a dense stack of microfins that boost the thermal transfer area between the copper base and coolant, ensuring unparalleled cooling.

• Universally Compatible and Easy to Install

• All EK-Nucleus AIOs have a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets. The installation process is very straightforward, thanks to the included manual and mounting mechanism. This product requires enough space to mount a single slim 360mm radiator, making it compatible with almost all modern cases.
