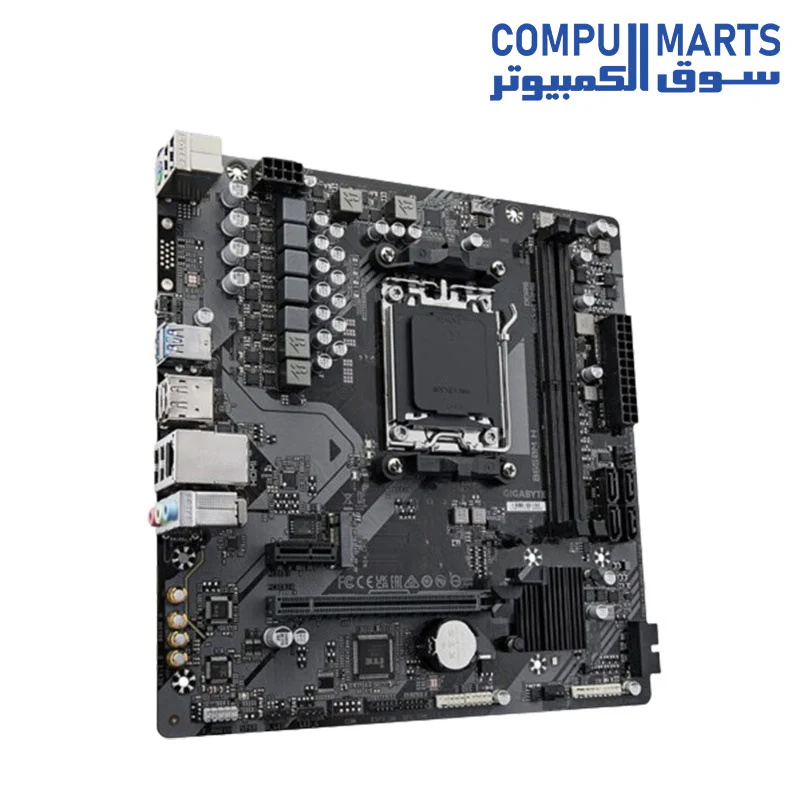

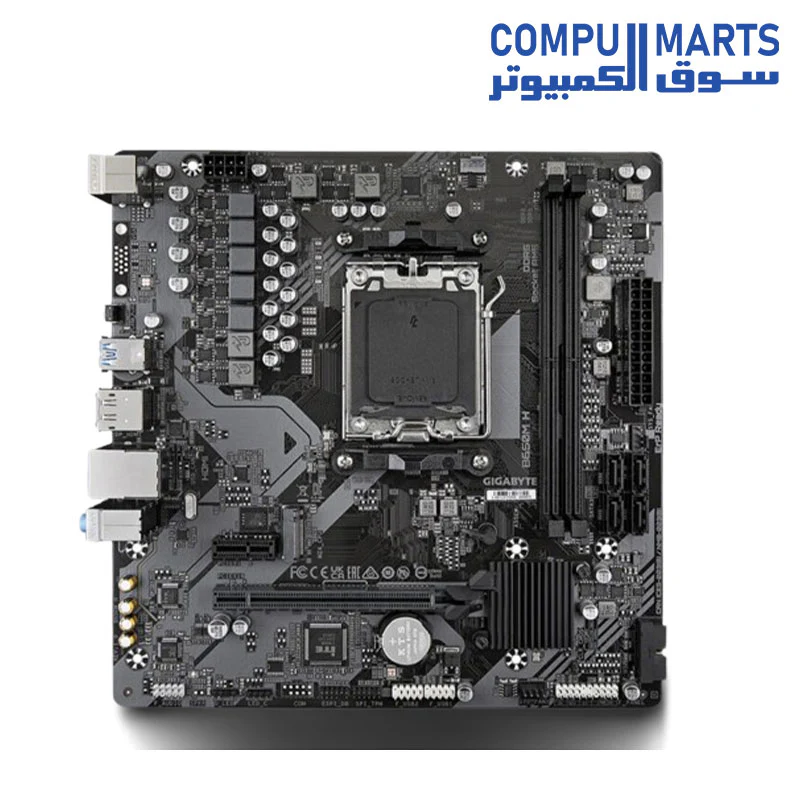

GIGABYTE B650M H Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 4.0 – M.2 – HDMI / DisplayPort – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready
GIGABYTE B650M H Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 4.0 – M.2 – HDMI / DisplayPort – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 7000 / Ryzen™ 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 2 x DDR5 DIMM sockets (up to 96GB); Supports up to DDR5 6400(OC); AMD EXPO™ & Intel® XMP Support |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (Supports x16/x8/x4 based on CPU); 1 x PCIe 3.0 x1 slot |
| Storage Interface | 1 x M.2 connector (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 support |
| USB (Back Panel) | 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| USB (Internal) | 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 via headers |
| Back Panel I/O | Q-Flash Plus button, PS/2 Port, DP, HDMI, RJ-45, 3 x Audio Jacks |
| Unique Features | 5+2+2 Phases Digital VRM; EZ-Latch; Smart Fan 6; Q-Flash Plus BIOS Flashback |
| Form Factor | Micro ATX; 23.0cm x 22.5cm |
$101.16
GIGABYTE B650M H Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 4.0 – M.2 – HDMI / DisplayPort – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready—
$101.16
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 7000 / Ryzen™ 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 2 x DDR5 DIMM sockets (up to 96GB); Supports up to DDR5 6400(OC); AMD EXPO™ & Intel® XMP Support |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (Supports x16/x8/x4 based on CPU); 1 x PCIe 3.0 x1 slot |
| Storage Interface | 1 x M.2 connector (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 support |
| USB (Back Panel) | 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| USB (Internal) | 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 via headers |
| Back Panel I/O | Q-Flash Plus button, PS/2 Port, DP, HDMI, RJ-45, 3 x Audio Jacks |
| Unique Features | 5+2+2 Phases Digital VRM; EZ-Latch; Smart Fan 6; Q-Flash Plus BIOS Flashback |
| Form Factor | Micro ATX; 23.0cm x 22.5cm |
