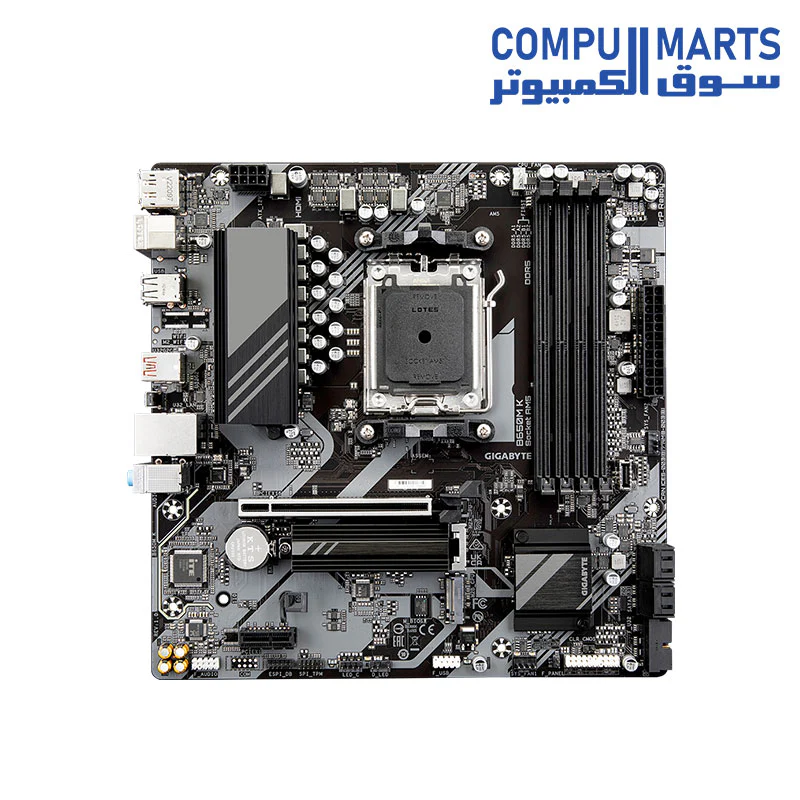

GIGABYTE B650M-K AORUS Motherboard
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 7000 / 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (Up to 192GB), Supports up to 8000(OC) MT/s, AMD EXPO™ & Intel® XMP |
| Graphics Output | 1 x DisplayPort 1.4 (4K 144Hz), 1 x HDMI 2.1 (4K 60Hz) |
| Audio | Realtek® High Definition Audio (2/4/5.1/7.1-channel) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (Supports x16/x8/x4 based on CPU), 1 x PCIe 3.0 x1 |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2 connectors, 4 x SATA 6Gb/s (RAID 0/1/10 support) |
| USB (Rear) | 1 x USB-C (3.2 Gen 2), 1 x USB 3.2 Gen 2 (Red), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Internal I/O | USB-C 3.2 Gen 1 Header, RGB/Addressable LED Headers, CPU & System Fan Headers |
| Special Features | Q-Flash Plus Button, GIGABYTE Control Center (GCC), BIOS Flashback |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
$120.24
GIGABYTE B650M-K AORUS Motherboard—
$120.24
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 7000 / 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (Up to 192GB), Supports up to 8000(OC) MT/s, AMD EXPO™ & Intel® XMP |
| Graphics Output | 1 x DisplayPort 1.4 (4K 144Hz), 1 x HDMI 2.1 (4K 60Hz) |
| Audio | Realtek® High Definition Audio (2/4/5.1/7.1-channel) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps) |
| Expansion Slots | 1 x PCIe 4.0 x16 (Supports x16/x8/x4 based on CPU), 1 x PCIe 3.0 x1 |
| Storage Interface | 2 x M.2 PCIe 4.0 x4/x2 connectors, 4 x SATA 6Gb/s (RAID 0/1/10 support) |
| USB (Rear) | 1 x USB-C (3.2 Gen 2), 1 x USB 3.2 Gen 2 (Red), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Internal I/O | USB-C 3.2 Gen 1 Header, RGB/Addressable LED Headers, CPU & System Fan Headers |
| Special Features | Q-Flash Plus Button, GIGABYTE Control Center (GCC), BIOS Flashback |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
