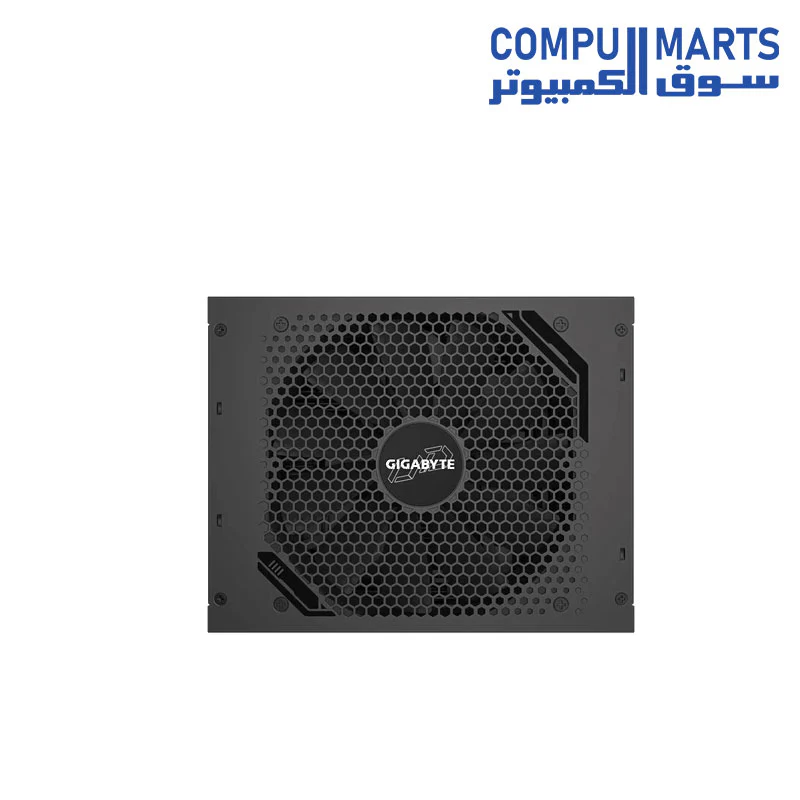

Gigabyte UD1600PM PG5 ,1600W, 80PLUS Platinum, ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular
Gigabyte UD1600PM PG5 ,1600W, 80PLUS Platinum, ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular
| Category | Specification Details |
|---|---|
| Model | Gigabyte UD1600PM PG5 |
| Form Factor | Intel Form Factor ATX 12V v3.1 |
| Output Capacity | 1600 W |
| 80 PLUS Rating | Platinum |
| Efficiency | 92% at typical load |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5 A |
| Input Frequency | 60-50 Hz |
| Dimension | 150 x 190 x 86 mm |
| Fan Type | 140 mm Double Ball Bearing fan |
| MTBF | >100,000 hours |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All black |
| ATX/MB 20+4 Pin | x 1 (610 mm) |
| CPU/EPS 4+4 Pin | x 2 (650 mm) |
| PCI-E 16 Pin | x 2 (700 mm) |
| PCI-E 16 Pin to PCI-E 8 Pin | x 2 (700 mm) |
| PCI-E 6+2 Pin | x 8 (650 mm + 150 mm) |
| SATA | x 16 (650 mm + 150 mm + 150 mm + 150 mm) |
| 4 Pin Peripheral | x 6 + 4 Pin Floppy x 2 (600 mm + 150 mm + 150 mm + 150 mm) |
| Special Features | ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular |
$372.18
Gigabyte UD1600PM PG5 ,1600W, 80PLUS Platinum, ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular—
$372.18
Description
| Category | Specification Details |
|---|---|
| Model | Gigabyte UD1600PM PG5 |
| Form Factor | Intel Form Factor ATX 12V v3.1 |
| Output Capacity | 1600 W |
| 80 PLUS Rating | Platinum |
| Efficiency | 92% at typical load |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5 A |
| Input Frequency | 60-50 Hz |
| Dimension | 150 x 190 x 86 mm |
| Fan Type | 140 mm Double Ball Bearing fan |
| MTBF | >100,000 hours |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All black |
| ATX/MB 20+4 Pin | x 1 (610 mm) |
| CPU/EPS 4+4 Pin | x 2 (650 mm) |
| PCI-E 16 Pin | x 2 (700 mm) |
| PCI-E 16 Pin to PCI-E 8 Pin | x 2 (700 mm) |
| PCI-E 6+2 Pin | x 8 (650 mm + 150 mm) |
| SATA | x 16 (650 mm + 150 mm + 150 mm + 150 mm) |
| 4 Pin Peripheral | x 6 + 4 Pin Floppy x 2 (600 mm + 150 mm + 150 mm + 150 mm) |
| Special Features | ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular |
