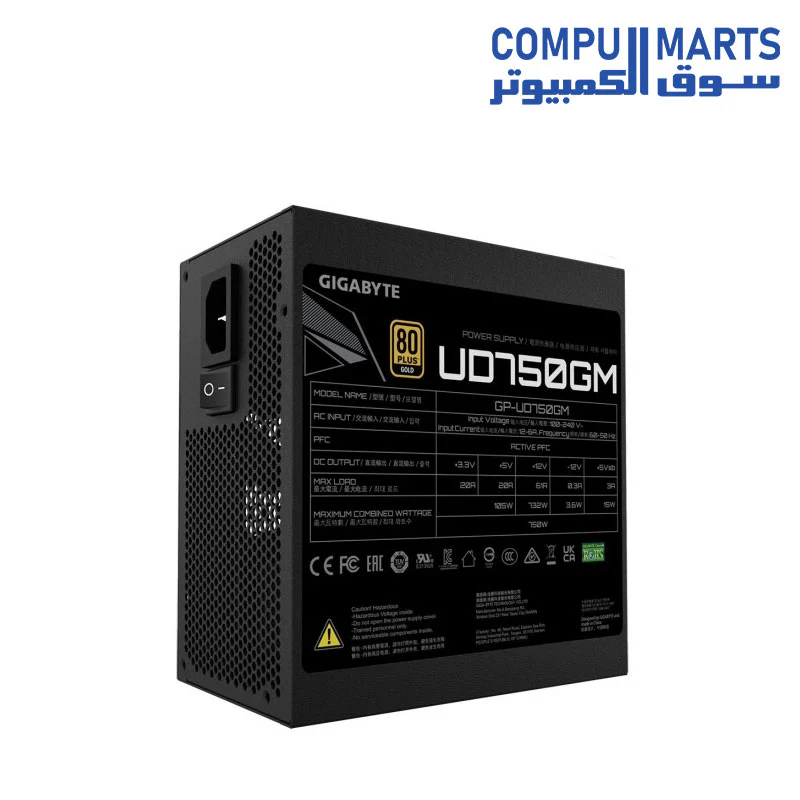

GIGABYTE GP-UD750GM 750W 80 Plus Gold Certified Fully Modular Power Supply

GIGABYTE GP-UD750GM 750W 80 Plus Gold Certified Fully Modular Power Supply



description:

Model:  GP-UD750GM
Type:  Intel Form Factor ATX 12V v2.31
PFC:  Active PFC (0.9 typical)
Input Voltage:  100-240 Vac (full range)
Input Current:  12-6A
Input Frequency:  60-50 Hz
Output Capacity: 750W
Dimension:  150 x 140 x 86 mm
Fan Type: 120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency:  90% at typical load
MTBF
100,000 hours
Protection:
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal:100-150ms
Hold Up Time: 16ms
Cable Type:  Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm  1
CPU/EPS 4+4 Pin x 2 : 600mm  2
PCI-e 6+2 Pin x 4 : 600mm+150mm  2
SATA x 8 :
600mm+150mm+150mm+150mm 2
4 Pin Peripheral x 3+4-Pin floppy x 1  500mm+120mm+120mm+150mm 1
