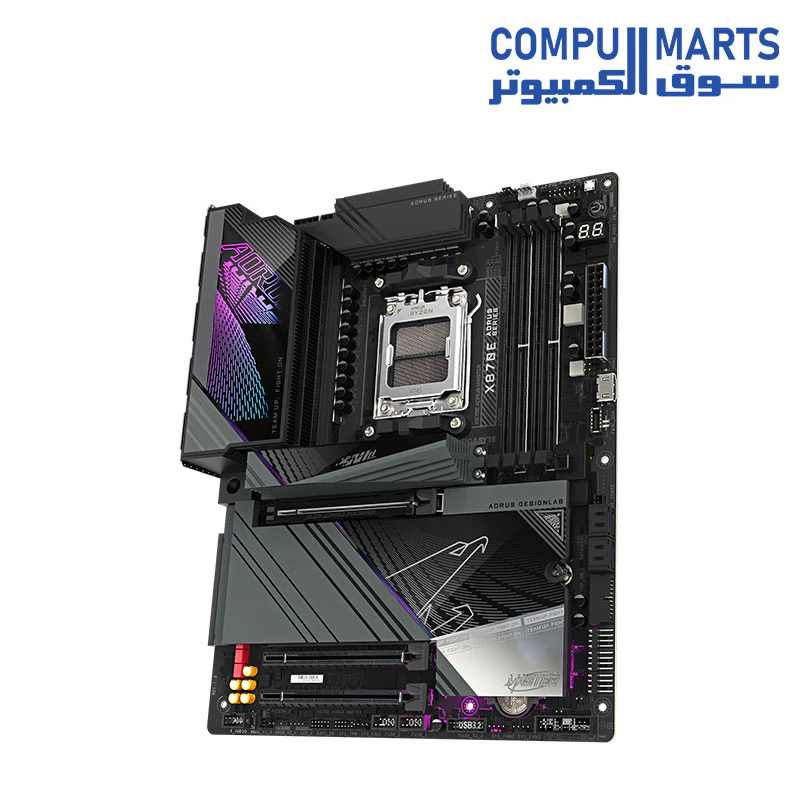

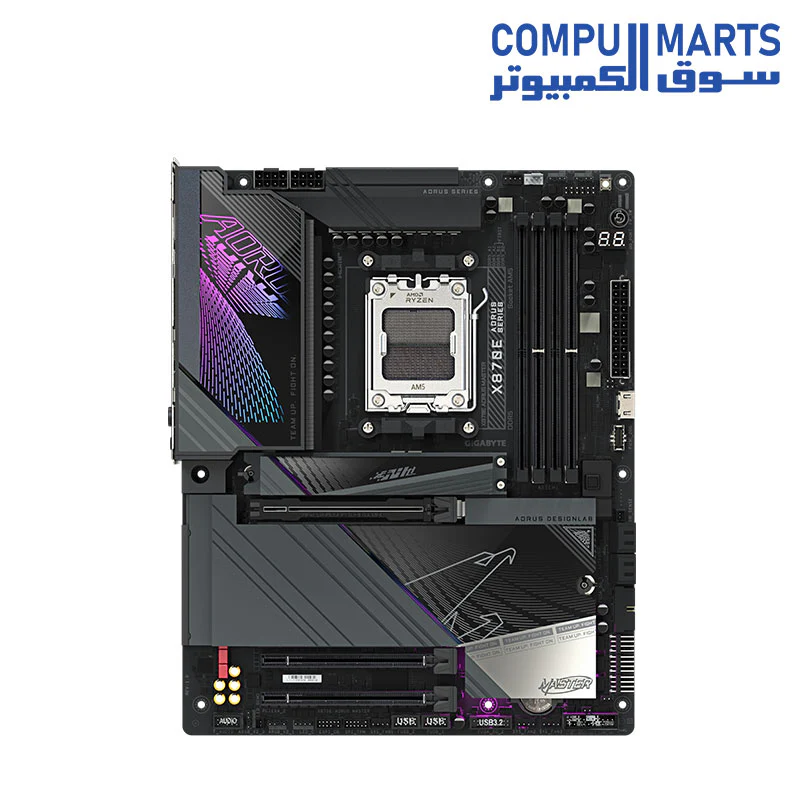

GIGABYTE X870E AORUS MASTER MOTHERBOARD
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4x DDR5 DIMM (Up to 256GB), Support up to 8600(OC) MT/s, AMD EXPO™ & XMP |
| Onboard Graphics | 2x USB4® Type-C (DP 3840x2160@240Hz), 1x HDMI 2.1 (4096x2160@60Hz) |
| Audio | Realtek ALC1220 CODEC, DTS:X® Ultra, 7.1-channel HD Audio |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Qualcomm Wi-Fi 7 QCNCM865 (802.11be), Bluetooth 5.3 |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x4 |
| Storage | 3x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s (RAID 0/1/5/10) |
| USB (Rear) | 2x USB4® Type-C, 4x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0 |
| Internal I/O | 1x USB Type-C (3.2 Gen 2x2), 4x ARGB Gen2, Noise Detection, Power/Reset Buttons |

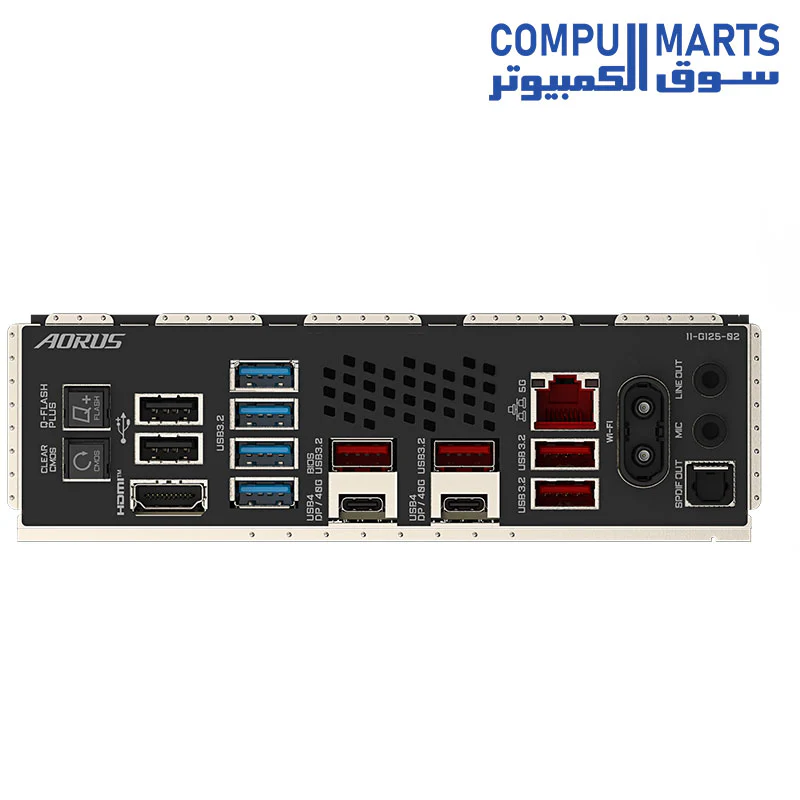

| Back Panel | Q-Flash Plus, Clear CMOS, Optical S/PDIF Out, 2x Audio Jacks, RJ-45 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
$477.15
GIGABYTE X870E AORUS MASTER MOTHERBOARD—
$477.15
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4x DDR5 DIMM (Up to 256GB), Support up to 8600(OC) MT/s, AMD EXPO™ & XMP |
| Onboard Graphics | 2x USB4® Type-C (DP 3840x2160@240Hz), 1x HDMI 2.1 (4096x2160@60Hz) |
| Audio | Realtek ALC1220 CODEC, DTS:X® Ultra, 7.1-channel HD Audio |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Qualcomm Wi-Fi 7 QCNCM865 (802.11be), Bluetooth 5.3 |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x4 |
| Storage | 3x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s (RAID 0/1/5/10) |
| USB (Rear) | 2x USB4® Type-C, 4x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0 |
| Internal I/O | 1x USB Type-C (3.2 Gen 2x2), 4x ARGB Gen2, Noise Detection, Power/Reset Buttons |
| Back Panel | Q-Flash Plus, Clear CMOS, Optical S/PDIF Out, 2x Audio Jacks, RJ-45 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
