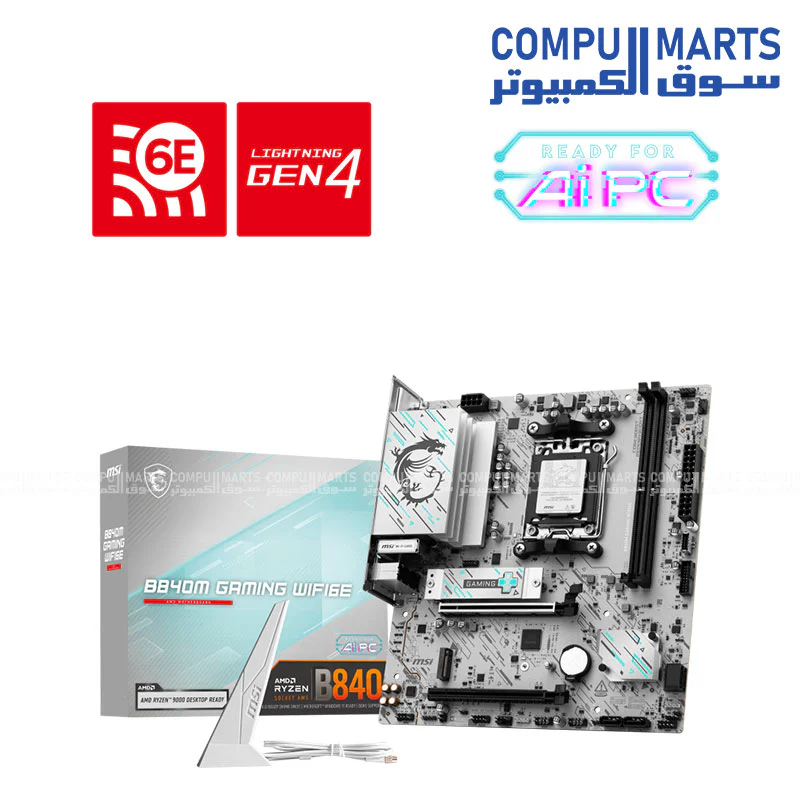

MSI B840M GAMING WIFI6E Motherboard | AMD AM5 DDR5, Wi-Fi 6E
| Category | Specification Details |
|---|---|
| Chipset | AMD B840 |
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 2x DDR5 UDIMM, Max 128GB; Supports up to 8000+ MT/s (OC); AMD EXPO™ & Dual-Channel Support |
| Onboard Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) - Requires CPU with Integrated Graphics |
| Expansion Slots | 1x PCIe 4.0 x16 (from CPU), 1x PCIe 3.0 x4 (from Chipset) |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G; Supports RAID 0, 1, 10 for SATA |
| Ethernet | Realtek® 8125D 2.5G LAN |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz) up to 2.4Gbps; Bluetooth 5.3 |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| USB (Rear) | 4x USB 5Gbps Type-A, 2x USB 2.0 |
| USB (Front) | 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Internal I/O | 1x CPU Fan, 2x System Fan, 3x ARGB V2, 1x RGB, TPM 2.0 header, COM Port |
| Back Panel | Clear CMOS Button, Flash BIOS Button, HDMI, DP, 2.5G LAN, Wi-Fi Antennas, Audio Jacks |
| Special Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| OS Support | Windows® 11 64-bit |
$128.83
MSI B840M GAMING WIFI6E Motherboard | AMD AM5 DDR5, Wi-Fi 6E—
$128.83
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD B840 |
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 2x DDR5 UDIMM, Max 128GB; Supports up to 8000+ MT/s (OC); AMD EXPO™ & Dual-Channel Support |
| Onboard Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) - Requires CPU with Integrated Graphics |
| Expansion Slots | 1x PCIe 4.0 x16 (from CPU), 1x PCIe 3.0 x4 (from Chipset) |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G; Supports RAID 0, 1, 10 for SATA |
| Ethernet | Realtek® 8125D 2.5G LAN |
| Wireless & BT | Wi-Fi 6E (2.4/5/6GHz) up to 2.4Gbps; Bluetooth 5.3 |
| Audio | Realtek® ALC897 Codec; 7.1-Channel High Definition Audio |
| USB (Rear) | 4x USB 5Gbps Type-A, 2x USB 2.0 |
| USB (Front) | 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Internal I/O | 1x CPU Fan, 2x System Fan, 3x ARGB V2, 1x RGB, TPM 2.0 header, COM Port |
| Back Panel | Clear CMOS Button, Flash BIOS Button, HDMI, DP, 2.5G LAN, Wi-Fi Antennas, Audio Jacks |
| Special Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| OS Support | Windows® 11 64-bit |
