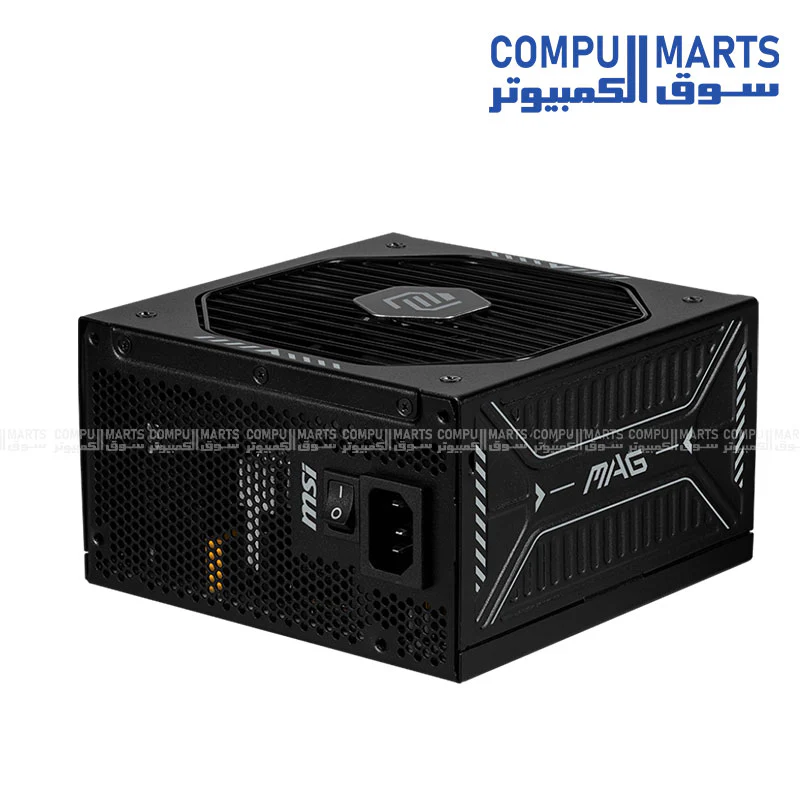

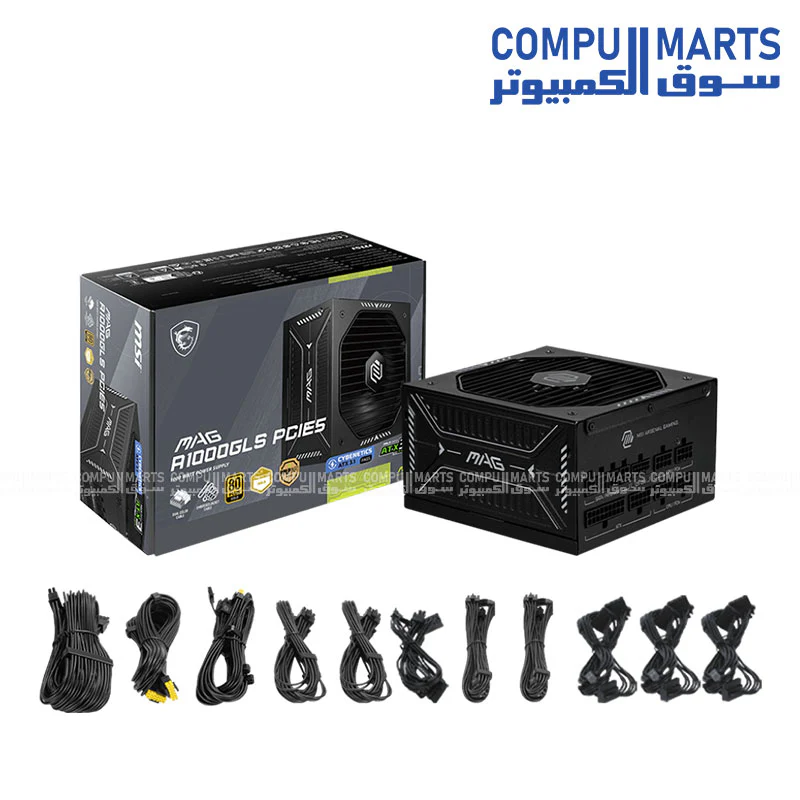

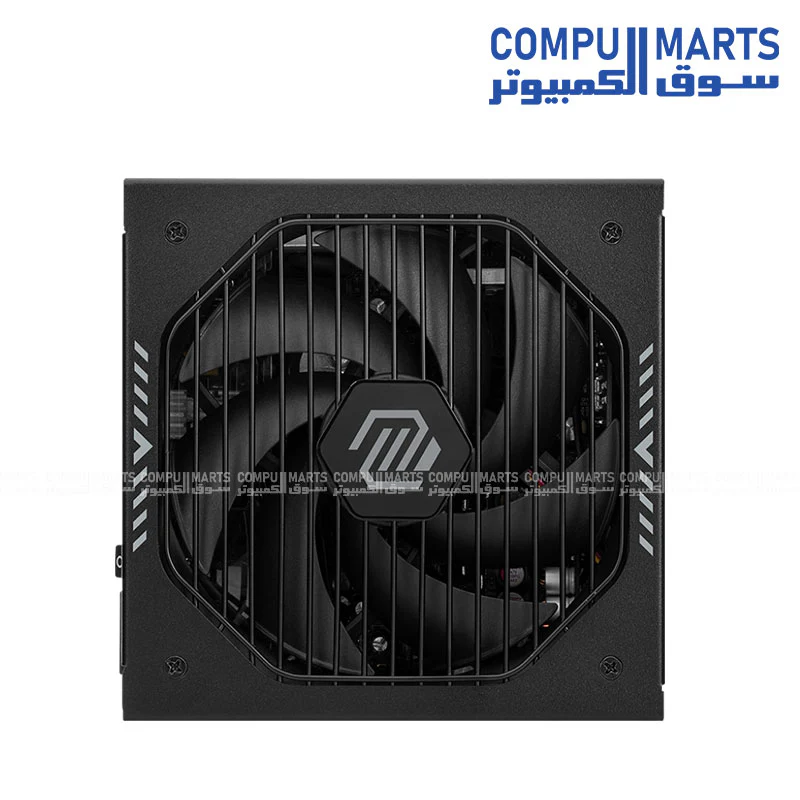

MSI MAG A1000GLS PCIe 5.1 1000W Fully Modular ATX 3.1 Power Supply – 80 PLUS Gold, FDB Fan, Full Protection
MSI MAG A1000GLS PCIe 5.1 1000W Fully Modular ATX 3.1 Power Supply – 80 PLUS Gold, FDB Fan, Full Protection
| Category | Specification Details |
|---|---|
| Product Name | MSI MAG A1000GLS PCIe 5.1 1000W Fully Modular ATX 3.1 |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (Full Modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (D × W × H) | 150 × 150 × 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Power Watt | 1000W |
| Power Excursion | 2200W (*up to 220% of PSU rated power for 100μs) |
| Input Frequency Range | 47-63 Hz |
| Protection | OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO |
| ATX (24 pin) | 1 |
| EPS (8 pin) | 2 |
| PCI-E 5.1 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 11 |
| Peripheral (4 pin) | 4 |
| FDD (4 pin) | 1 |
$156.51
MSI MAG A1000GLS PCIe 5.1 1000W Fully Modular ATX 3.1 Power Supply – 80 PLUS Gold, FDB Fan, Full Protection—
$156.51
Description
| Category | Specification Details |
|---|---|
| Product Name | MSI MAG A1000GLS PCIe 5.1 1000W Fully Modular ATX 3.1 |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (Full Modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (D × W × H) | 150 × 150 × 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Power Watt | 1000W |
| Power Excursion | 2200W (*up to 220% of PSU rated power for 100μs) |
| Input Frequency Range | 47-63 Hz |
| Protection | OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO |
| ATX (24 pin) | 1 |
| EPS (8 pin) | 2 |
| PCI-E 5.1 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 11 |
| Peripheral (4 pin) | 4 |
| FDD (4 pin) | 1 |
