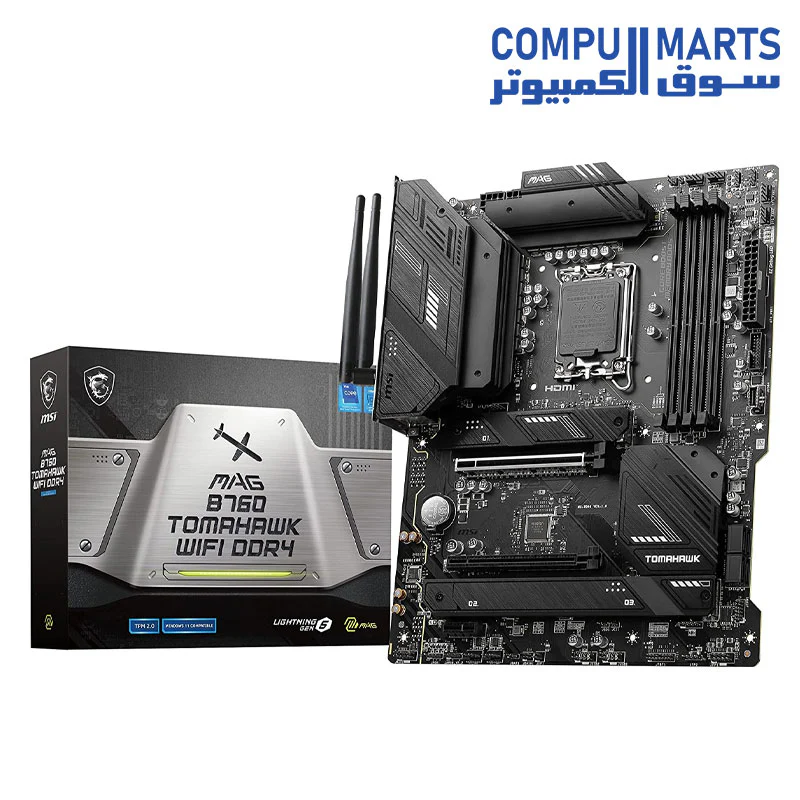

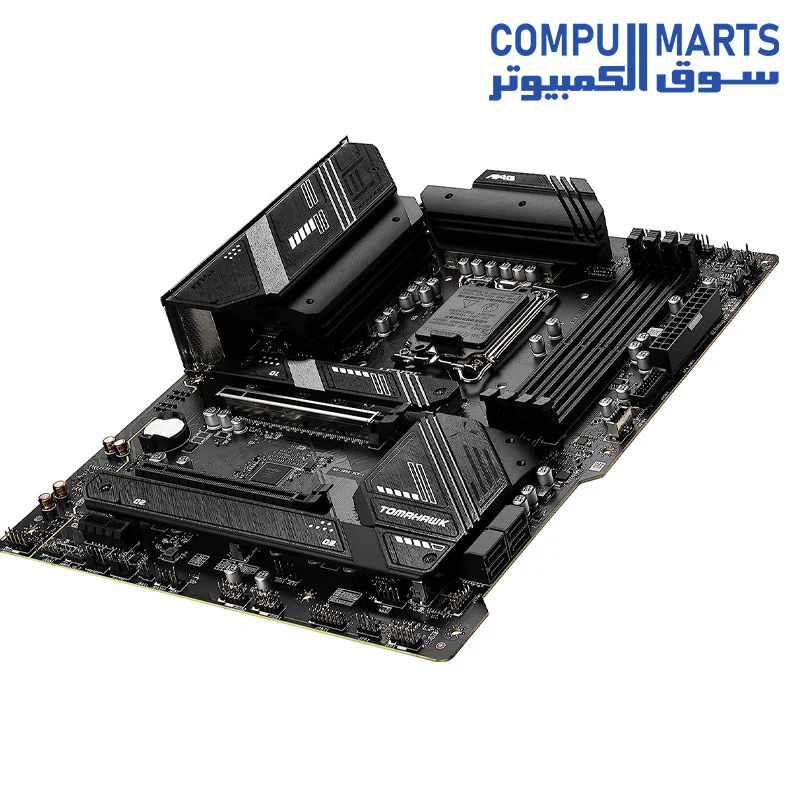

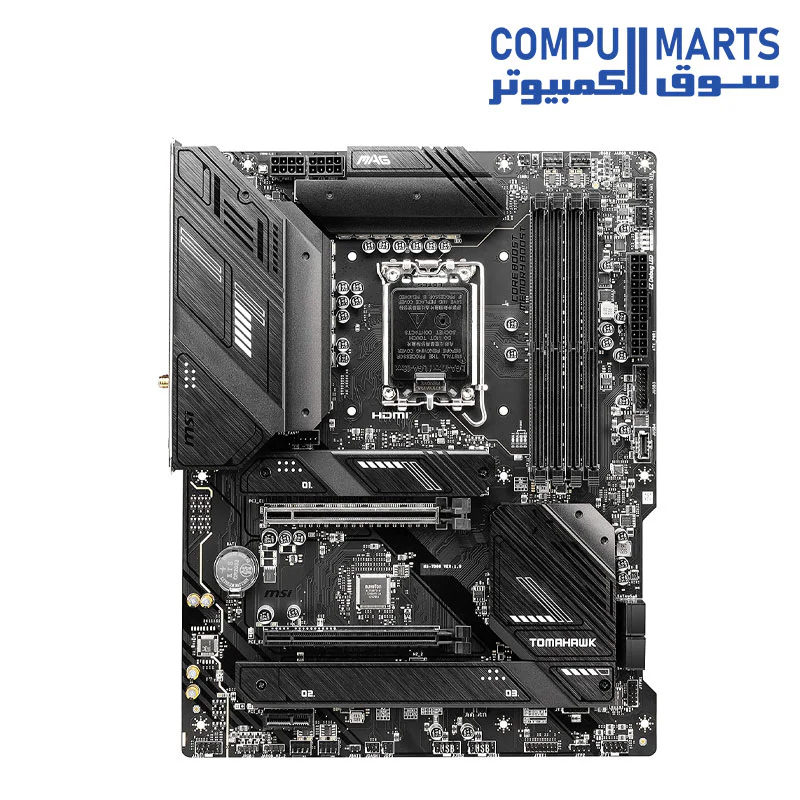

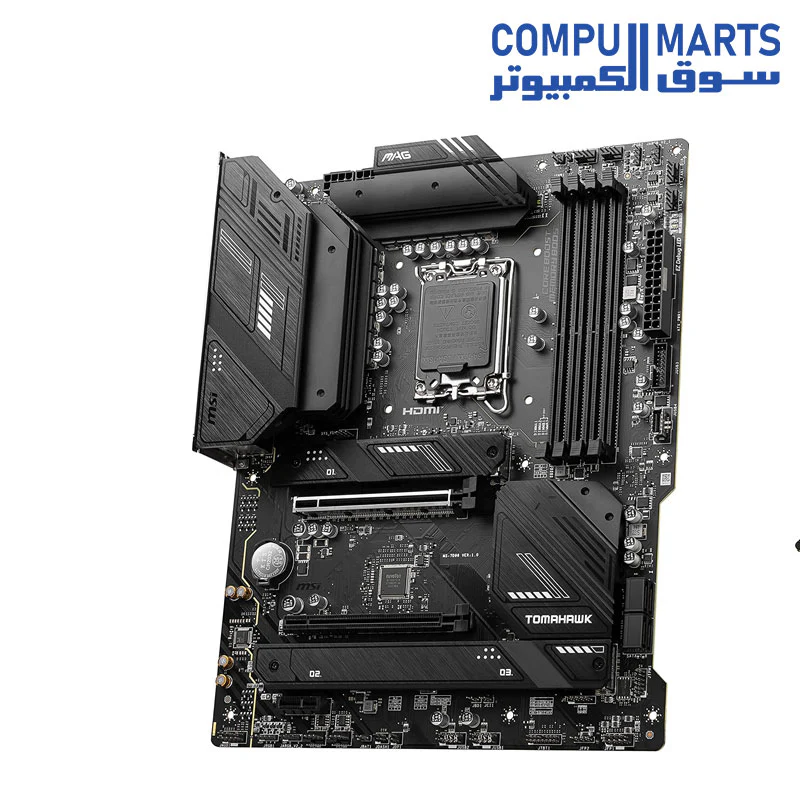

MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard
MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard
description:
Model
Brand
|
MSI
|
Model
|
MAG B760 TOMAHAWK WIFI DDR4
|
Supported CPU
CPU Socket Type
|
LGA 1700
|
CPU Type
|
Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
|
Chipsets
Chipset
|
Intel B760
|
Memory
Number of Memory Slots
|
4x288pin (DDR4)
|
Memory Standard
|
DDR4 3200
|
Maximum Memory Supported
|
128GB
|
Channel Supported
|
Dual Channel
|
Memory Feature
|
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory
|
Expansion Slots
PCI Express 5.0 x16
|
1 x PCI Express 5.0 x16
|
PCI Express x4
|
1 x PCI Express 3.0 x4
|
PCI Express x1
|
1 x PCI Express 4.0 x1
|
Storage Devices
SATA 6Gb/s
|
4 x SATA 6Gb/s
|
M.2
|
3 x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
M2_3* slot (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
* SATA7 will be unavailable when installing M2.SATA SSD in the M2_3 slot.
|
SATA RAID
|
0/1/5/10
|
Onboard Audio
Audio Chipset
|
Realtek ALC897
|
Audio Channels
|
7.1-Channel High Definition Audio
|
Onboard LAN
LAN Chipset
|
Realtek RTL8125BG-CG 2.5Gbps LAN controller
|
Max LAN Speed
|
2.5Gbps
|
Wireless LAN
|
Intel Wi-Fi 6E
|
Bluetooth
|
Bluetooth 5.3
|
Back I/O Ports
|
4 x USB 2.0 Type-A ports (From Hub GL850G)
1 x DisplayPort port
1 x HDMI port
1 x 2.5Gbps LAN (RJ45) jack
4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
2 x Wi-Fi Antenna connectors
5 x Audio jacks
1 x Optical S/PDIF Out connector
|
Internal I/O Connectors
Onboard USB
|
1 x USB 3.2 Gen 2 10Gbps Type-C port (From B760 chipset)
1 x USB 3.2 Gen 1 5Gbps connector (From B760 chipset)
- Support additional 2 USB 3.2 Gen 1 5Gbps ports
2 x USB 2.0 Type-A connectors (From B760 chipset)
- Supports additional 4 USB 2.0 ports
|
Other Connectors
|
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Tuning Controller connector
1 x TBT connector (Supports RTD3)
|
Physical Spec
Form Factor
|
ATX
|
Dimensions (W x L)
|
12.0" x 9.6"
|
Power Pin
|
2 x 4-pin RGB LED connectors
2 x 3-pin ARGB Gen2 LED connectors
4 x EZ Debug LED
|
$219.49
