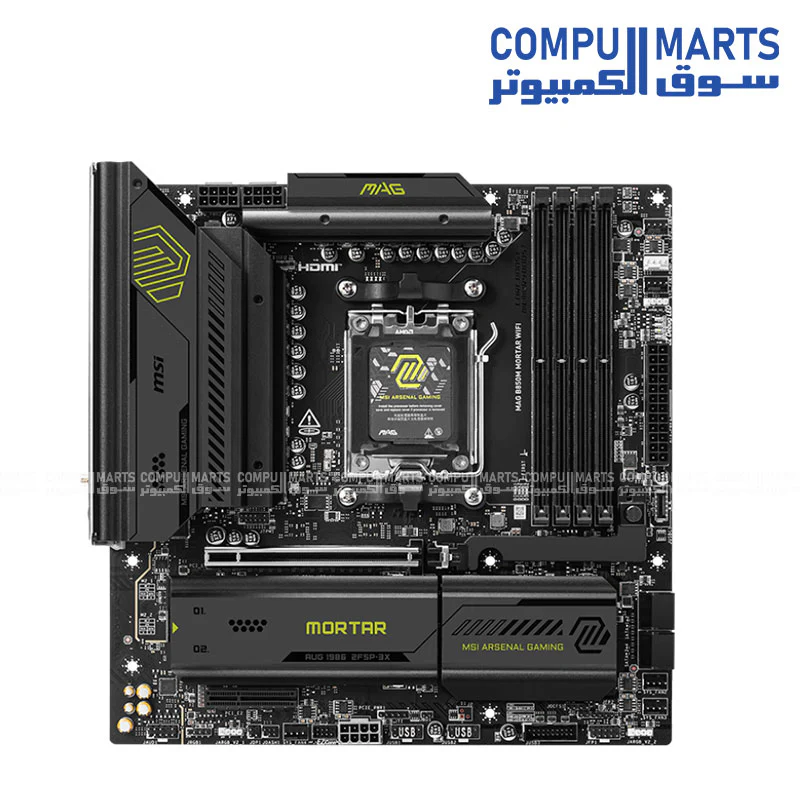

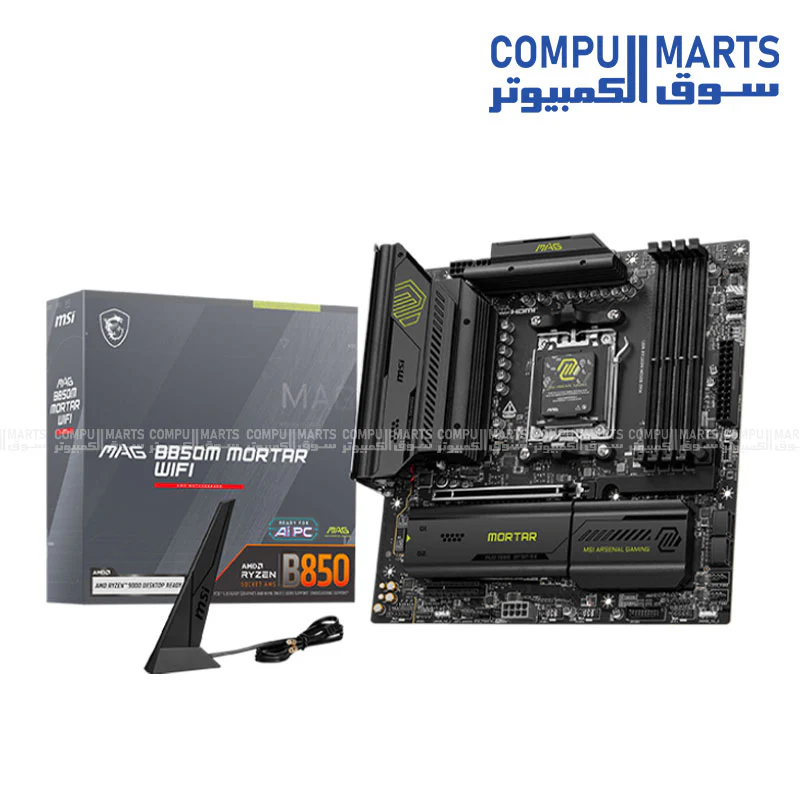

MSI MAG B850M MORTAR WIFI Motherboard – AM5, DDR5, PCIe 5.0, WiFi 7
| Category | Specification Details |
|---|---|
| Chipset & Socket | AMD B850 | Socket AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Support | 4× DDR5 UDIMM, Max 256GB (Dual Channel) |
| Memory Speed | Up to 8200+ MT/s (OC) | 5600 - 4800 MT/s (JEDEC) |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) |
| Storage (M.2) | 2× M.2 PCIe 5.0 x4, 1× M.2 PCIe 4.0 x2 |
| Storage (SATA) | 4× SATA 6Gb/s (RAID 0/1/10) |
| Graphics Output | 1× HDMI™ 2.1 FRL (Up to 8K @ 60Hz) |
| Networking | Realtek® 5G LAN + Wi-Fi 7 (Up to 5.8Gbps) + Bluetooth 5.4 |
| Rear USB Ports | 1x 20Gbps Type-C, 1x 10Gbps Type-C, 3x 10Gbps Type-A, 4x 5Gbps Type-A |
| Audio | Realtek® ALC4080 7.1-Channel USB Audio (S/PDIF) |
| Cooling Headers | 1x CPU Fan, 1x Pump/System Fan, 4x System Fan |
| RGB Support | 3× ARGB (JARGB_V2), 1× RGB (JRGB) |
| Special Features | EZ Debug LED, Flash BIOS, Clear CMOS, AMD EXPO Support |
$214.72
MSI MAG B850M MORTAR WIFI Motherboard – AM5, DDR5, PCIe 5.0, WiFi 7—
$214.72
Description
| Category | Specification Details |
|---|---|
| Chipset & Socket | AMD B850 | Socket AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Support | 4× DDR5 UDIMM, Max 256GB (Dual Channel) |
| Memory Speed | Up to 8200+ MT/s (OC) | 5600 - 4800 MT/s (JEDEC) |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) |
| Storage (M.2) | 2× M.2 PCIe 5.0 x4, 1× M.2 PCIe 4.0 x2 |
| Storage (SATA) | 4× SATA 6Gb/s (RAID 0/1/10) |
| Graphics Output | 1× HDMI™ 2.1 FRL (Up to 8K @ 60Hz) |
| Networking | Realtek® 5G LAN + Wi-Fi 7 (Up to 5.8Gbps) + Bluetooth 5.4 |
| Rear USB Ports | 1x 20Gbps Type-C, 1x 10Gbps Type-C, 3x 10Gbps Type-A, 4x 5Gbps Type-A |
| Audio | Realtek® ALC4080 7.1-Channel USB Audio (S/PDIF) |
| Cooling Headers | 1x CPU Fan, 1x Pump/System Fan, 4x System Fan |
| RGB Support | 3× ARGB (JARGB_V2), 1× RGB (JRGB) |
| Special Features | EZ Debug LED, Flash BIOS, Clear CMOS, AMD EXPO Support |
