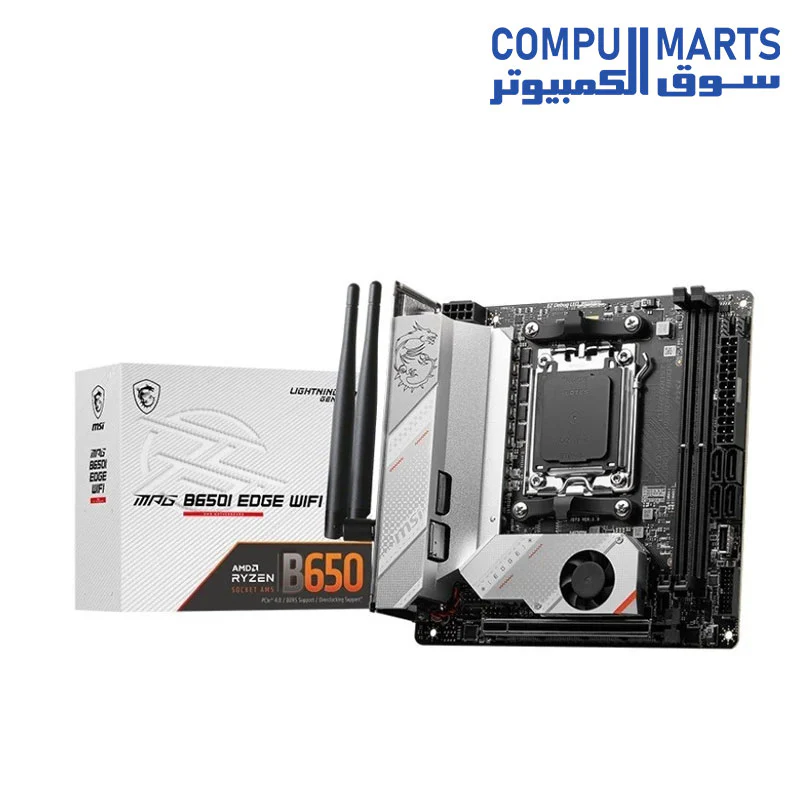

MSI MPG B650I EDGE WIFI AMD AM5 Mini ITX Motherboard
MSI MPG B650I EDGE WIFI AMD AM5 Mini ITX Motherboard
Specifications:
Model
Brand
|
MSI
|
Model
|
MPG B650I EDGE WIFI
|
Supported CPU
CPU Socket Type
|
AM5
|
CPU Type
|
Supports AMD Ryzen 7000 Series Desktop Processor
|
Chipsets
Chipset
|
AMD B650
|
Memory
Number of Memory Slots
|
2x288pin (DDR5)
|
Memory Standard
|
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
|
Maximum Memory Supported
|
64GB
|
Channel Supported
|
Dual Channel
|
Expansion Slots
PCI Express 4.0 x16
|
1x PCIe x16 slot (From CPU)
- Supports PCIe 4.0 x16
|
Storage Devices
Serial ATA (SATA)
|
4 x SATA 6Gb/s
|
M.2
|
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
|
SATA RAID
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
|
Onboard Audio
Audio Chipset
|
Realtek ALC4080
|
Audio Channels
|
7.1 Channels
|
Onboard LAN
LAN Chipset
|
1x Realtek RTL8125 2.5Gbps LAN controller
|
Max LAN Speed
|
2.5Gbps
|
Wireless LAN
|
AMD Wi-Fi RZ616
- The Wireless module is pre-installed in the M.2 (Key-E) slot
|
Rear Panel Ports
Back I/O Ports
|
1x Clear CMOS button
1x Flash BIOS button
1x HDMI port
2x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU)
2x USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
1x USB 3.2 Gen 2 10Gbps Type-A port (From B650 chipset)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From ASM4242)
1x LAN (RJ45) jack
2x Wi-Fi Antenna connectors
3x Audio jacks
|
Internal I/O Connectors
Onboard USB
|
1x USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)
1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
1x USB 2.0 connector
- Supports additional 2 USB 2.0 ports (From B650 chipset)
|
Other Connectors
|
Fan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x 4-pin system fan connector
System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
LED Features
4x EZ Debug LED
1x 3-pin ARGB V2 LED connector
|
Physical Spec
Form Factor
|
Mini ITX
|
LED Lighting
|
RGB
|
Dimensions (W x L)
|
6.7" x 6.7"
|
Power Pin
|
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
|
Software Feature
Windows 11
|
Supported
|
Features
Features
|
MSI Center Features
- Gaming Mode
- Smart Priority
- Game Highlights
- Mystic Light (Sync & control)
- Ambient link
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Device Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
- System Info
- Microsoft APP
- My Device
- MSI Display kit
Thermal Features
- Extended Heatsink Design
- MOSFET Baseplate
- M.2 Shield Frozr
- K7 MOSFET thermal pad/ Extra choke pad
- Fan headers (CPU + PUMP + SYSTEM)
Performance
- Core Boost
- VRM Power Design
- Memory Boost
- Lightning Gen 4 PCI-E/ M.2 Slot
- Front USB Type-C
- 2oz Copper thickened PCB
DIY Friendly
- PCI-E Steel Armor
- Pre-installed I/O Shield
- EZ DEBUG LED
- EZ LED Control
- Flash BIOS Button
RGB Soupport
- Mystic Light Extension (A-RAINBOW V2)
- Ambient Devices Support
Exclusive Software
- AIDA 64
- APP player
|
