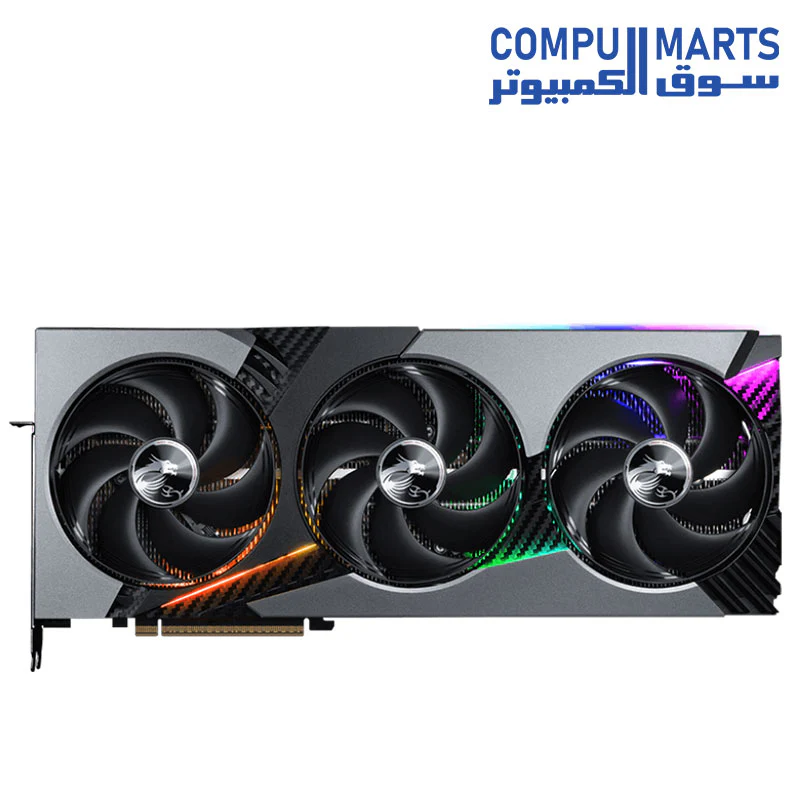

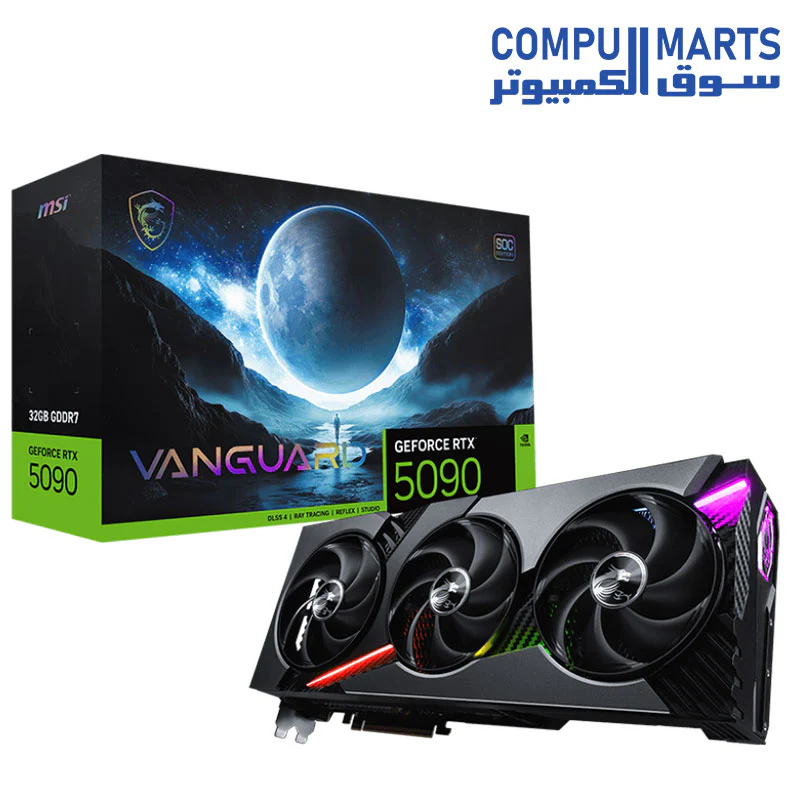

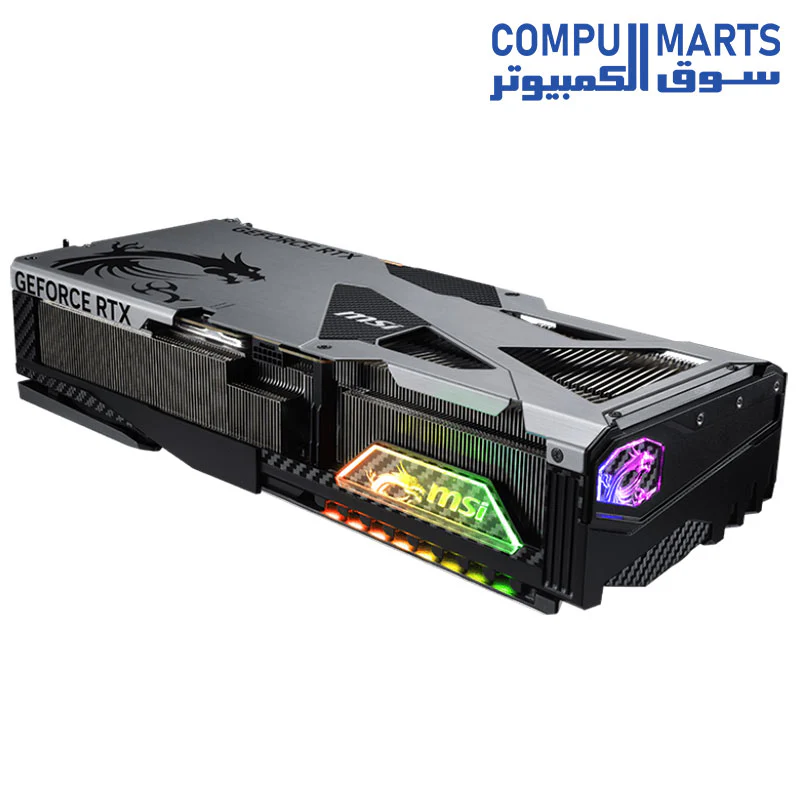

MSI RTX 5090 VANGUARD SOC 32GB GDDR7 GRAPHIC CARDS
| Category | Specification Details |
|---|---|
| Marketing Name | GeForce RTX 5090 32G VANGUARD SOC |
| Model Name | G5090-32VGS |
| Graphics Processing Unit | NVIDIA GeForce RTX 5090 |
| Interface | PCI Express Gen 5 |
| Core Clocks | Extreme Performance: 2527 MHz (MSI Center) Boost: 2512 MHz (GAMING & SILENT Mode) |
| CUDA CORES | 21760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512bit |
| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 575W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 1000W |
| Card Dimension (mm) | 357 x 151 x 76 mm |
| Weight (Card / Package) | 2407 g / 3302 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
| Connections | 1. DisplayPort, 2. HDMI |
| HYPER FROZR THERMAL DESIGN | An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation. |
| STORMFORCE FAN | Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise. |
| Advanced Vapor Chamber | Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation. |
| Core Pipes | Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. |
| Filled Fins | Updated heat pipe pathing has allowed more space for additional heatsink fins. |
| Air Antegrade Fin 2.0 | The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency. |
| Wave Curved 4.0 | Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence. |

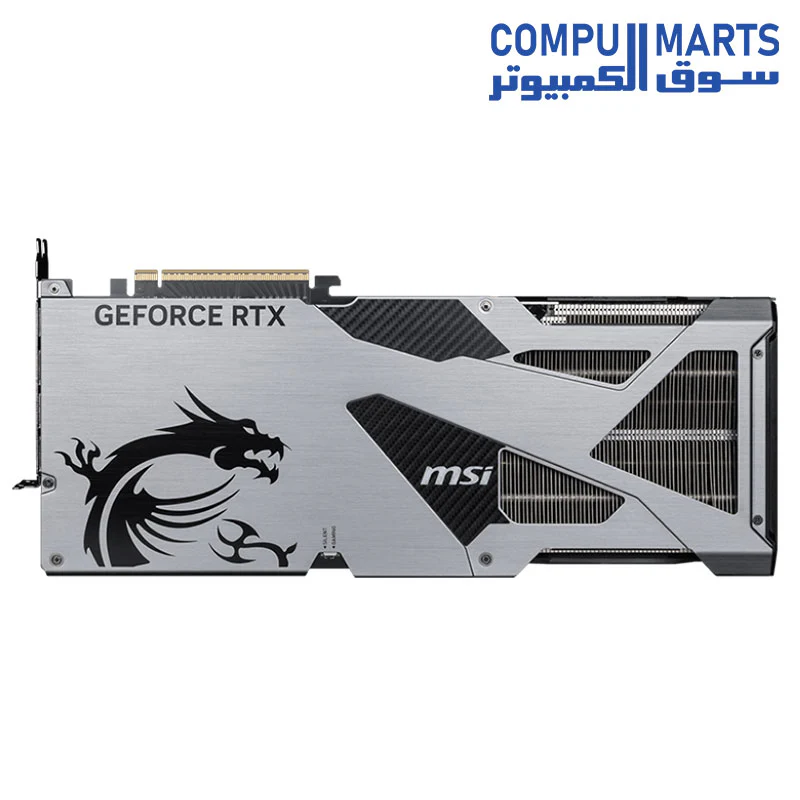

| Metal Backplate | A reinforcing metal backplate with airflow vents and thermal pads enhances cooling. |
| Dual BIOS | Dual BIOS lets you set the priority to full performance in GAMING mode or low noise in SILENT mode. |
| MSI Center | The exclusive MSI Center software lets you monitor, tweak and optimize MSI products. |
$4,052.59
MSI RTX 5090 VANGUARD SOC 32GB GDDR7 GRAPHIC CARDS—
$4,052.59
Description
| Category | Specification Details |
|---|---|
| Marketing Name | GeForce RTX 5090 32G VANGUARD SOC |
| Model Name | G5090-32VGS |
| Graphics Processing Unit | NVIDIA GeForce RTX 5090 |
| Interface | PCI Express Gen 5 |
| Core Clocks | Extreme Performance: 2527 MHz (MSI Center) Boost: 2512 MHz (GAMING & SILENT Mode) |
| CUDA CORES | 21760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512bit |
| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 575W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | 1000W |
| Card Dimension (mm) | 357 x 151 x 76 mm |
| Weight (Card / Package) | 2407 g / 3302 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
| Connections | 1. DisplayPort, 2. HDMI |
| HYPER FROZR THERMAL DESIGN | An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation. |
| STORMFORCE FAN | Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise. |
| Advanced Vapor Chamber | Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation. |
| Core Pipes | Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. |
| Filled Fins | Updated heat pipe pathing has allowed more space for additional heatsink fins. |
| Air Antegrade Fin 2.0 | The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency. |
| Wave Curved 4.0 | Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence. |
| Metal Backplate | A reinforcing metal backplate with airflow vents and thermal pads enhances cooling. |
| Dual BIOS | Dual BIOS lets you set the priority to full performance in GAMING mode or low noise in SILENT mode. |
| MSI Center | The exclusive MSI Center software lets you monitor, tweak and optimize MSI products. |
