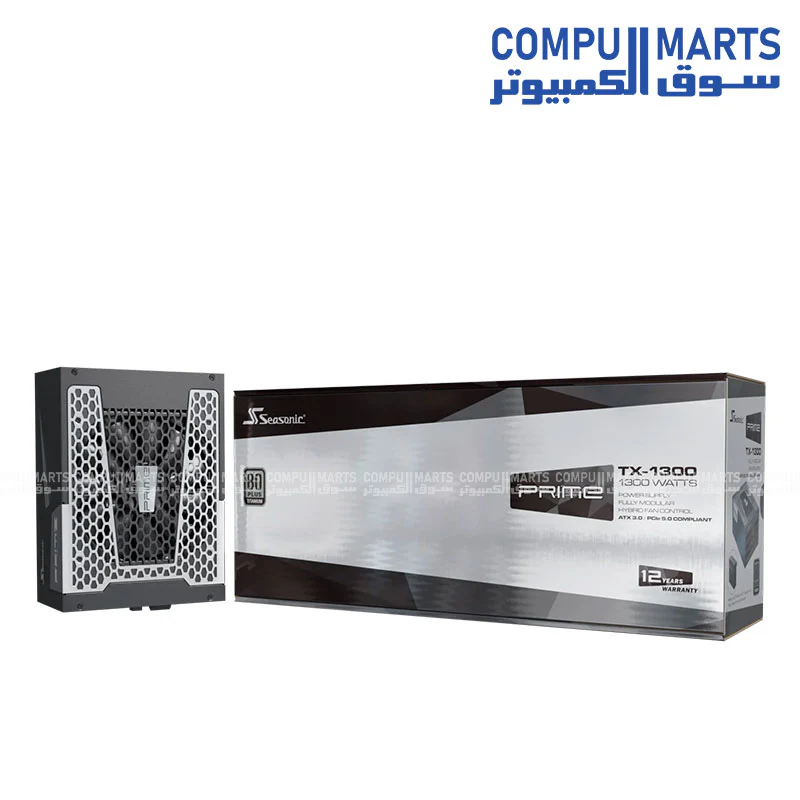

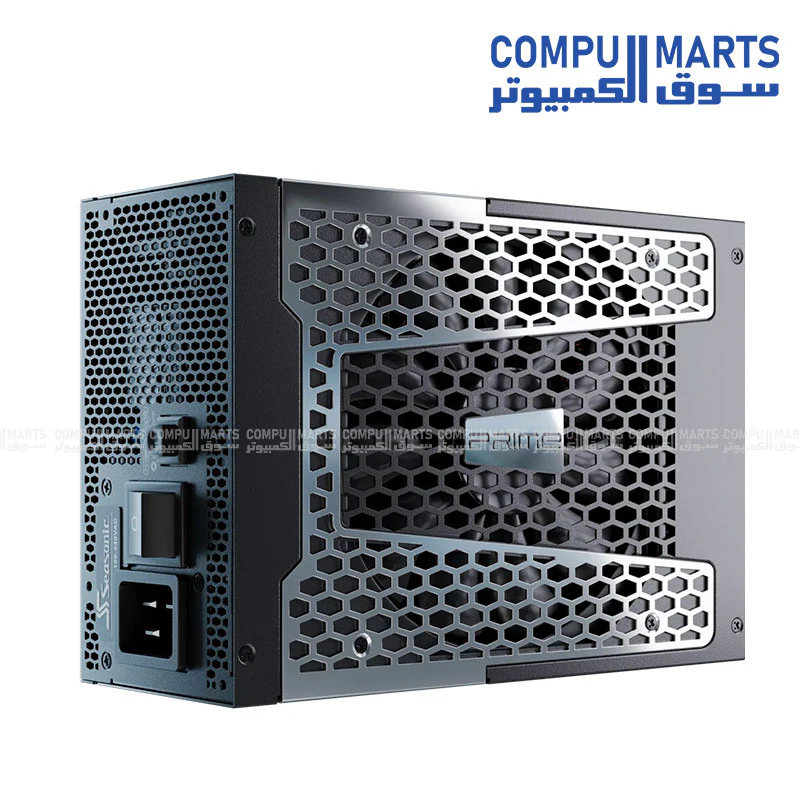

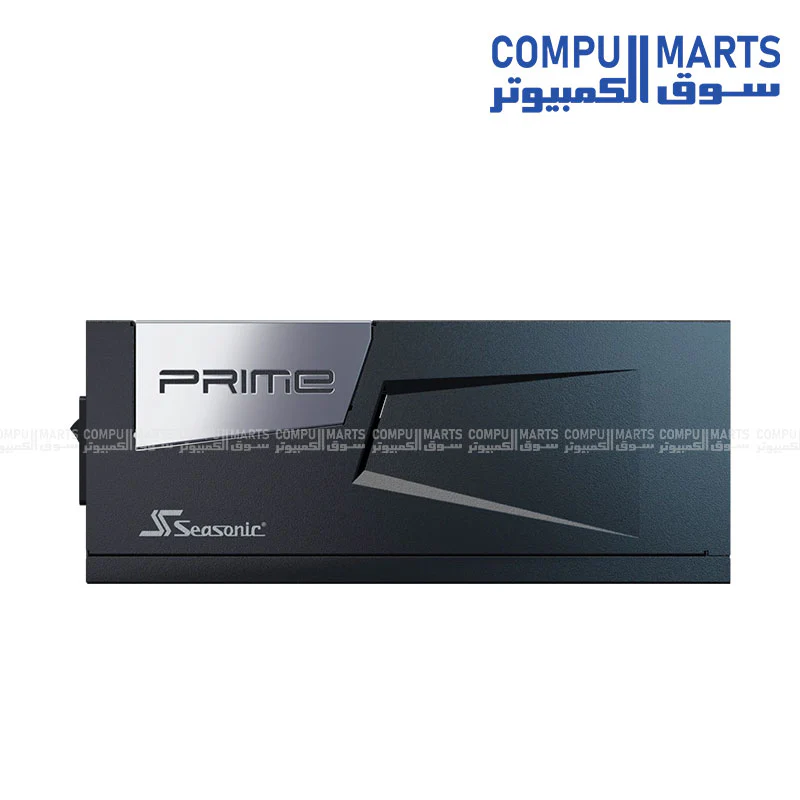

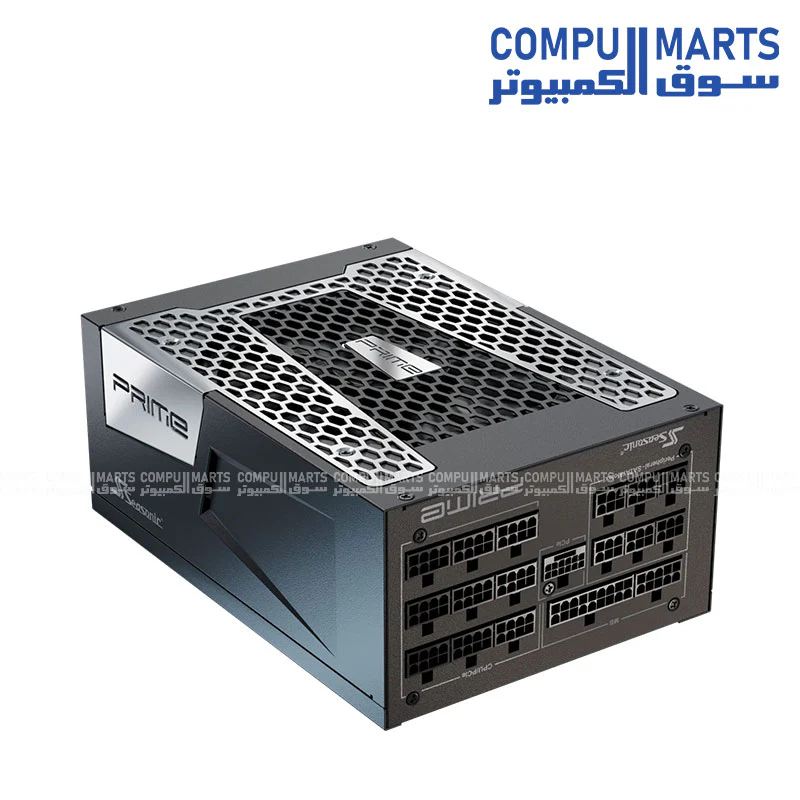

Seasonic Prime TX-1300 1300W ATX 3.1 Titanium Fully Modular PSU
| Category | Specification Details |
|---|---|
| Product Name | Seasonic Prime TX-1300 1300W ATX 3.1 80 Plus Titanium Fully Modular Hybrid Fan Power Supply |
| Certification | 80PLUS Titanium |
| Cybenetics Efficiency Level | Titanium |
| Cybenetics Noise Level | Lambda A |
| Form Factor | ATX/EPS |
| Dimensions | 210 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15% - 65% RH |
| Modularity | Fully Modular |
| Cable Type | Individual Black Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C (excl. fan) | 100,000 hours |
| AC Input | 100 V - 240 V, 15 - 10 A, 50 - 60 Hz |
| Protections | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety & EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output Rails | +3.3 V, +5 V, +12 V, -12 V, +5 VSB |
| Maximum Current per Rail | 25 A, 25 A, 133.3 A, 0.5 A, 3 A |
| Maximum Power per Rail | 25 W, 125 W, 1600 W, 6 W, 15 W |
| Total Continuous Power | 1300 W (100-240V AC), 1600 W (115-240V AC) |
$438.98
Seasonic Prime TX-1300 1300W ATX 3.1 Titanium Fully Modular PSU—
$438.98
Description
| Category | Specification Details |
|---|---|
| Product Name | Seasonic Prime TX-1300 1300W ATX 3.1 80 Plus Titanium Fully Modular Hybrid Fan Power Supply |
| Certification | 80PLUS Titanium |
| Cybenetics Efficiency Level | Titanium |
| Cybenetics Noise Level | Lambda A |
| Form Factor | ATX/EPS |
| Dimensions | 210 × 150 × 86 mm |
| Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Life Expectancy | 50,000 hours at 40 °C, 15% - 65% RH |
| Modularity | Fully Modular |
| Cable Type | Individual Black Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C (excl. fan) | 100,000 hours |
| AC Input | 100 V - 240 V, 15 - 10 A, 50 - 60 Hz |
| Protections | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety & EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| DC Output Rails | +3.3 V, +5 V, +12 V, -12 V, +5 VSB |
| Maximum Current per Rail | 25 A, 25 A, 133.3 A, 0.5 A, 3 A |
| Maximum Power per Rail | 25 W, 125 W, 1600 W, 6 W, 15 W |
| Total Continuous Power | 1300 W (100-240V AC), 1600 W (115-240V AC) |
