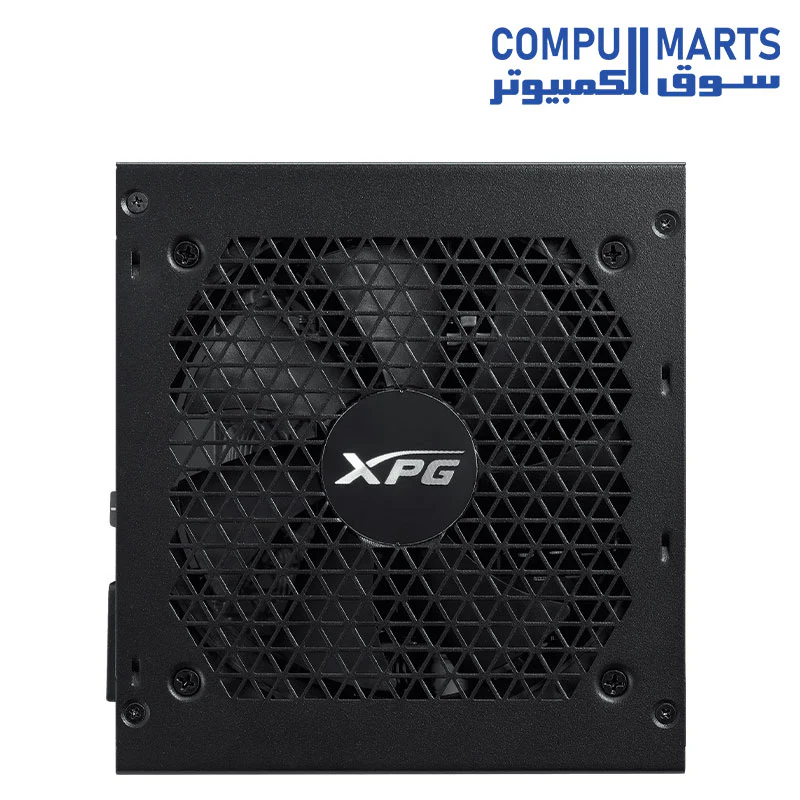

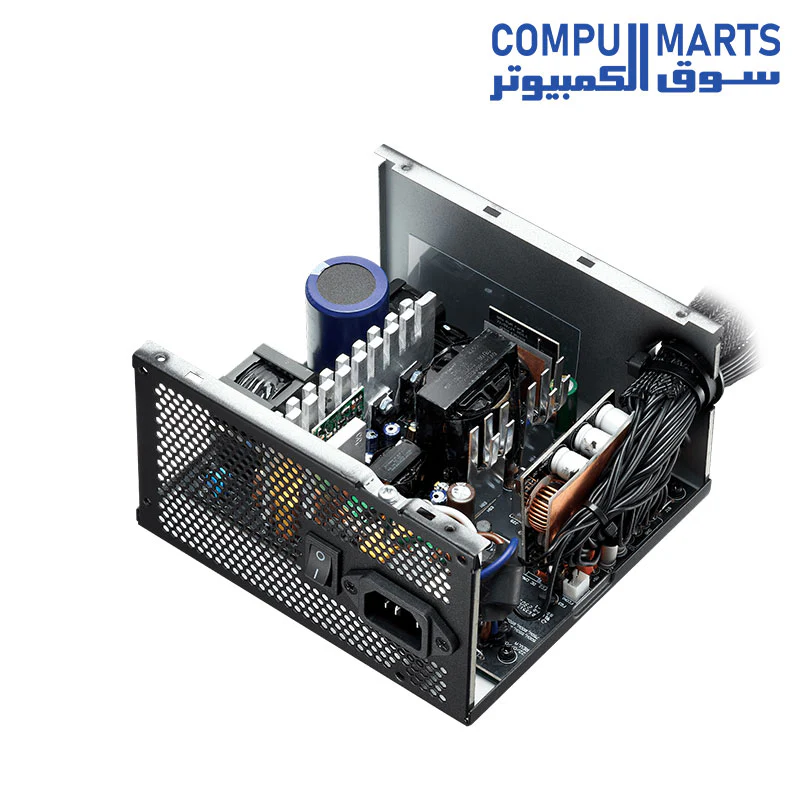

XPG KYBER Power Supply Unit Gold
| Category | Specification Details |
|---|---|
| Product | XPG KYBER Power Supply Unit Gold |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Cybenetics Rating | 850W: PLATINUM | 750W/650W: GOLD |
| 80 Plus Rating | GOLD |
| ATX Version | 850W /750W : ATX 12V 3.0 | 650W : ATX 12V 2.52 |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| Certification | CB/TUV/cTUVus/CE+UKCA/FCC+IC/LVD+UKCA/BSMI/RCM/BIS/EAC+ROHS/S-MARK/NOM |
| PFC | >0.99 |
| Input Voltage | 100V-240V |
| Input Current | 850W : 12A | 750W : 10A | 650W :10A |
| Input Frequency | 47 – 63 Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output | 850W /750W /650W |
| Power Excursion | 850W: 1700W (*up to 200% of the PSU's rated power for 100μs) | 750W: 1500W (*up to 200% of the PSU's rated power for 100μs) |
| Operating Temperature | 40 °C |
| Fan Size | 120 x 120 x 25mm |
| Fan Bearing | FDB |
| Fan Speed | 2400 |
| MTBF | 100,000 hours |
| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| PCI-E 6+2 Pin Connector | 850W : 2 | 750W : 2 | 650W : 2 |
| Molex 4 Pin Connector | 850W : 2 | 750W : 2 | 650W : 2 |
| 12VHPWR (12 + 4) Connector (600W) | 850W : 1 | 750W : 1 | 650W : 0 |
| SATA Connector | 850W : 6 | 750W : 6 | 650W : 6 |
| Weight | 850W : 2.032Kg | 750W :2.024Kg | 650W :1.768Kg |
Select Size
From $74.44
XPG KYBER Power Supply Unit Gold—
$74.44
Description
| Category | Specification Details |
|---|---|
| Product | XPG KYBER Power Supply Unit Gold |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Cybenetics Rating | 850W: PLATINUM | 750W/650W: GOLD |
| 80 Plus Rating | GOLD |
| ATX Version | 850W /750W : ATX 12V 3.0 | 650W : ATX 12V 2.52 |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| Certification | CB/TUV/cTUVus/CE+UKCA/FCC+IC/LVD+UKCA/BSMI/RCM/BIS/EAC+ROHS/S-MARK/NOM |
| PFC | >0.99 |
| Input Voltage | 100V-240V |
| Input Current | 850W : 12A | 750W : 10A | 650W :10A |
| Input Frequency | 47 – 63 Hz |
| DC Output Voltage | +5V | +3.3V | +12V | -12V | +5Vsb |
| Total Output | 850W /750W /650W |
| Power Excursion | 850W: 1700W (*up to 200% of the PSU's rated power for 100μs) | 750W: 1500W (*up to 200% of the PSU's rated power for 100μs) |
| Operating Temperature | 40 °C |
| Fan Size | 120 x 120 x 25mm |
| Fan Bearing | FDB |
| Fan Speed | 2400 |
| MTBF | 100,000 hours |
| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| PCI-E 6+2 Pin Connector | 850W : 2 | 750W : 2 | 650W : 2 |
| Molex 4 Pin Connector | 850W : 2 | 750W : 2 | 650W : 2 |
| 12VHPWR (12 + 4) Connector (600W) | 850W : 1 | 750W : 1 | 650W : 0 |
| SATA Connector | 850W : 6 | 750W : 6 | 650W : 6 |
| Weight | 850W : 2.032Kg | 750W :2.024Kg | 650W :1.768Kg |
