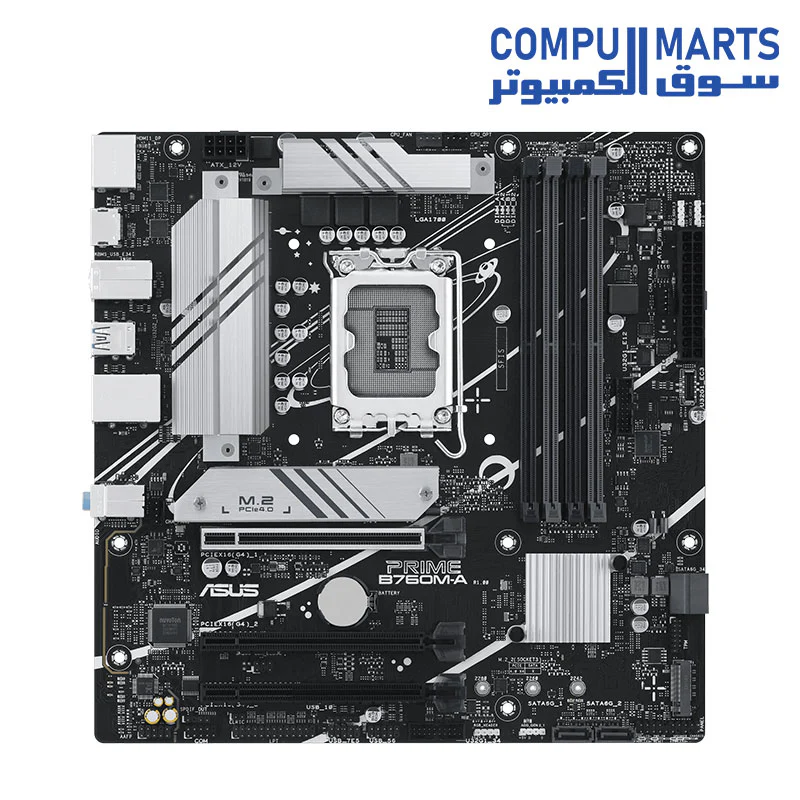

ASUS INTEL PRIME B760M-A-CSM LGA1700 Motherboard
| Category | Specification Details |
|---|---|
| Model | PRIME B760M-A-CSM |
| CPU Support | Intel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 up to 7200+(OC), Dual Channel, OptiMem II, XMP Support |
| Graphics | 1 x DisplayPort 1.4, 2 x HDMI™ 2.1 (Supports 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (max x4 mode), 1 x PCIe 4.0 x16 (max x1 mode) |
| Storage | 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports (RAID 0/1/5/10 support) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 headers (4 ports), 3 x USB 2.0 headers (5 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Premium capacitors, Audio Shielding |
| Back I/O Ports | DP, 2x HDMI, 2.5Gb LAN, 3x Audio Jacks, PS/2 Combo, 6x USB ports |
| Internal Connectors | 4x Fan headers, 24-pin/8-pin Power, 3x Add Gen 2 headers, 1x Aura RGB header, TPM, COM, LPT |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-LED Core, Q-Slot), ASUS Thermal Solution, Aura Sync |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
$120.24
ASUS INTEL PRIME B760M-A-CSM LGA1700 Motherboard—
$120.24
Description
| Category | Specification Details |
|---|---|
| Model | PRIME B760M-A-CSM |
| CPU Support | Intel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 up to 7200+(OC), Dual Channel, OptiMem II, XMP Support |
| Graphics | 1 x DisplayPort 1.4, 2 x HDMI™ 2.1 (Supports 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (max x4 mode), 1 x PCIe 4.0 x16 (max x1 mode) |
| Storage | 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s ports (RAID 0/1/5/10 support) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 headers (4 ports), 3 x USB 2.0 headers (5 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Premium capacitors, Audio Shielding |
| Back I/O Ports | DP, 2x HDMI, 2.5Gb LAN, 3x Audio Jacks, PS/2 Combo, 6x USB ports |
| Internal Connectors | 4x Fan headers, 24-pin/8-pin Power, 3x Add Gen 2 headers, 1x Aura RGB header, TPM, COM, LPT |
| Special Features | ASUS 5X PROTECTION III, Q-Design (Q-LED Core, Q-Slot), ASUS Thermal Solution, Aura Sync |
| Form Factor | mATX Form Factor (24.4 cm x 24.4 cm) |
