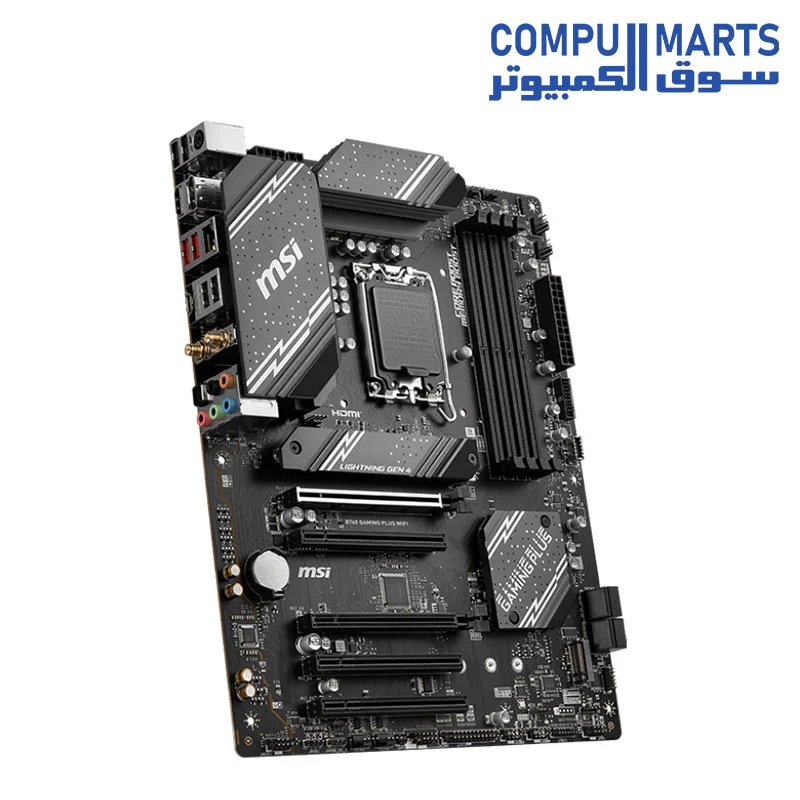

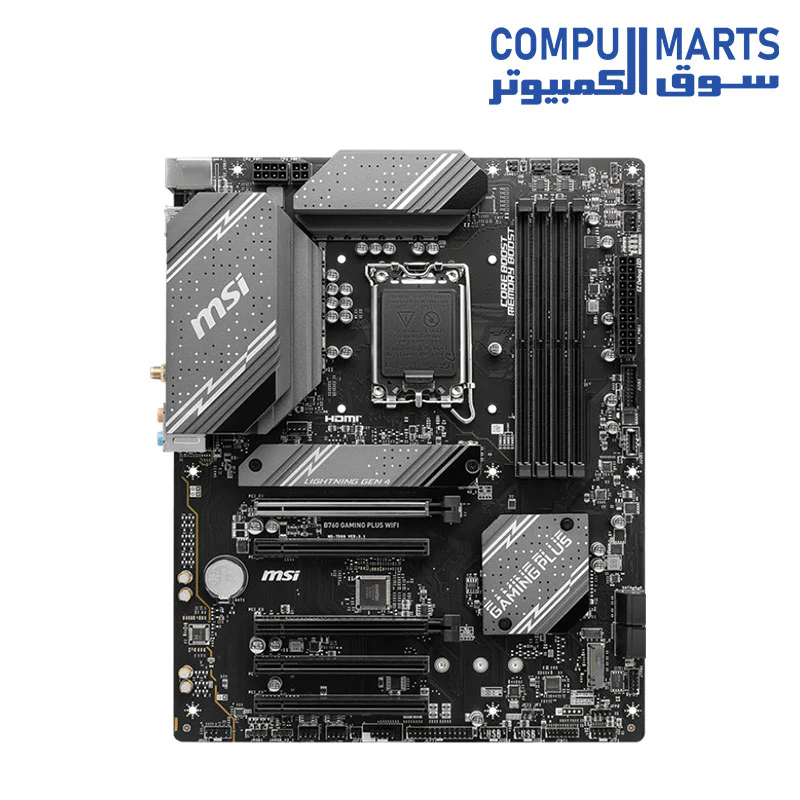

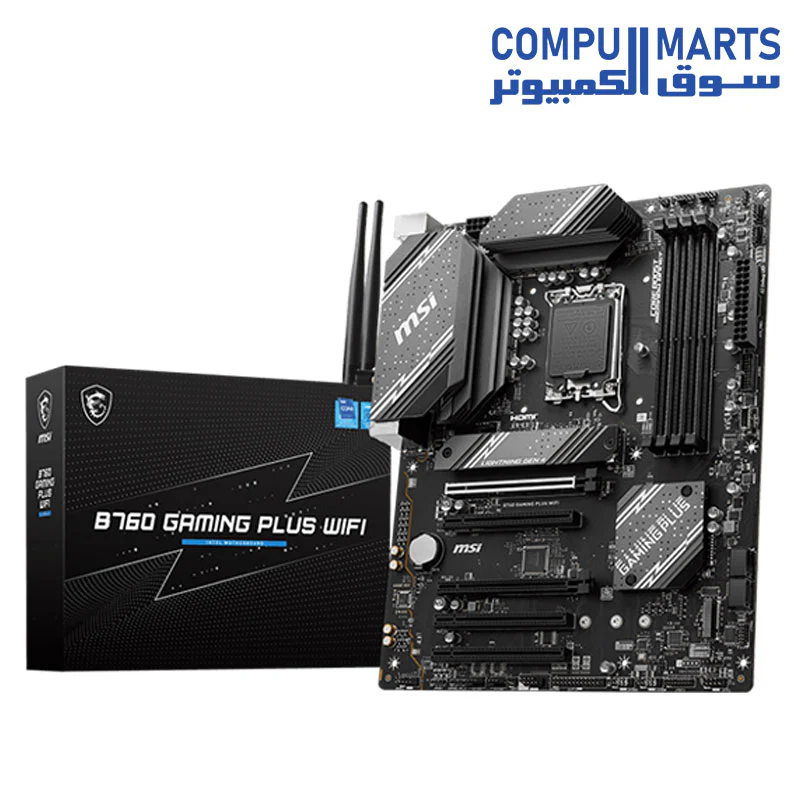

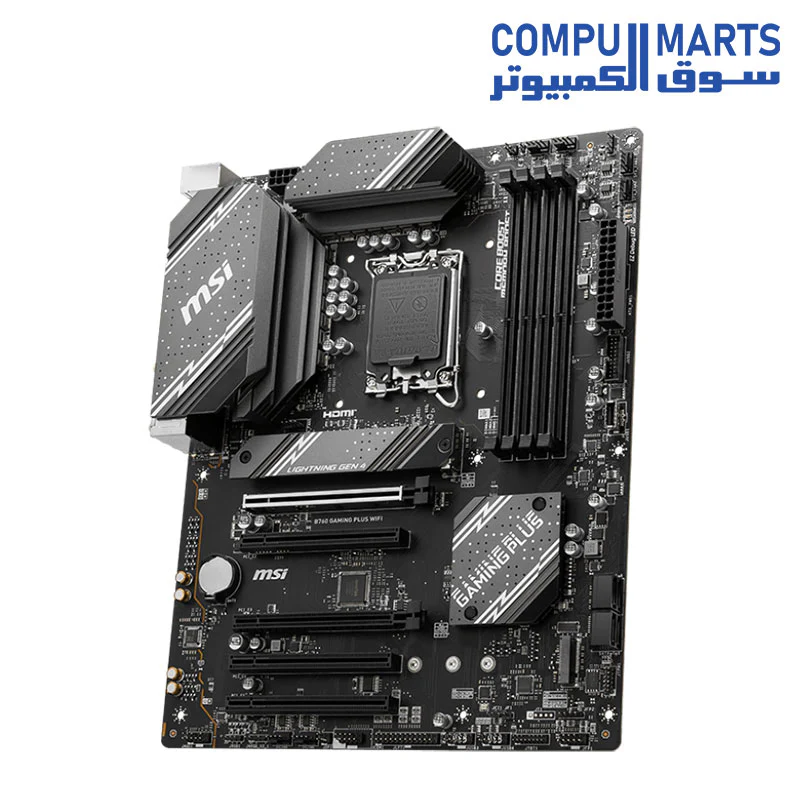

MSI B760 Gaming Plus WiFi Gaming Motherboard
| Category | Specification Details |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel Core 14th/ 13th/ 12th Gen Processors, Pentium Gold and Celeron (LGA 1700) |
| Memory | 4x DDR5, Max 256GB (Up to 6800+ MHz OC), Supports Intel XMP 3.0 |
| Graphics Output | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) |
| Expansion Slots | 5x PCI-E slots (1x Gen 4.0 x16, 1x Gen 4.0 x4, 3x Gen 3.0 x1) |
| Storage | 2x M.2 Gen4 x4 slots, 4x SATA 6G ports (RAID 0, 1, 5, 10 supported) |
| USB Ports | Rear: 1x USB-C (10Gbps), 2x USB-A (10Gbps), 4x USB 2.0 | Front: 1x USB-C (5Gbps), 2x USB-A (5Gbps), 4x USB 2.0 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless / Bluetooth | Intel Wi-Fi 6E (2.4/5/6GHz up to 2.4Gbps) + Bluetooth 5.3 |
| Audio | Realtek ALC897 Codec, 7.1-Channel HD Audio, S/PDIF output |
| Internal I/O | 1x Pump Fan, 5x System Fan, 2x ARGB V2, 1x RGB, 1x TPM header, 1x TBT connector |
| Form Factor | ATX (243.84mm x 304.8mm) |
$185.12
MSI B760 Gaming Plus WiFi Gaming Motherboard—
$185.12
Description
| Category | Specification Details |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel Core 14th/ 13th/ 12th Gen Processors, Pentium Gold and Celeron (LGA 1700) |
| Memory | 4x DDR5, Max 256GB (Up to 6800+ MHz OC), Supports Intel XMP 3.0 |
| Graphics Output | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) |
| Expansion Slots | 5x PCI-E slots (1x Gen 4.0 x16, 1x Gen 4.0 x4, 3x Gen 3.0 x1) |
| Storage | 2x M.2 Gen4 x4 slots, 4x SATA 6G ports (RAID 0, 1, 5, 10 supported) |
| USB Ports | Rear: 1x USB-C (10Gbps), 2x USB-A (10Gbps), 4x USB 2.0 | Front: 1x USB-C (5Gbps), 2x USB-A (5Gbps), 4x USB 2.0 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless / Bluetooth | Intel Wi-Fi 6E (2.4/5/6GHz up to 2.4Gbps) + Bluetooth 5.3 |
| Audio | Realtek ALC897 Codec, 7.1-Channel HD Audio, S/PDIF output |
| Internal I/O | 1x Pump Fan, 5x System Fan, 2x ARGB V2, 1x RGB, 1x TPM header, 1x TBT connector |
| Form Factor | ATX (243.84mm x 304.8mm) |
