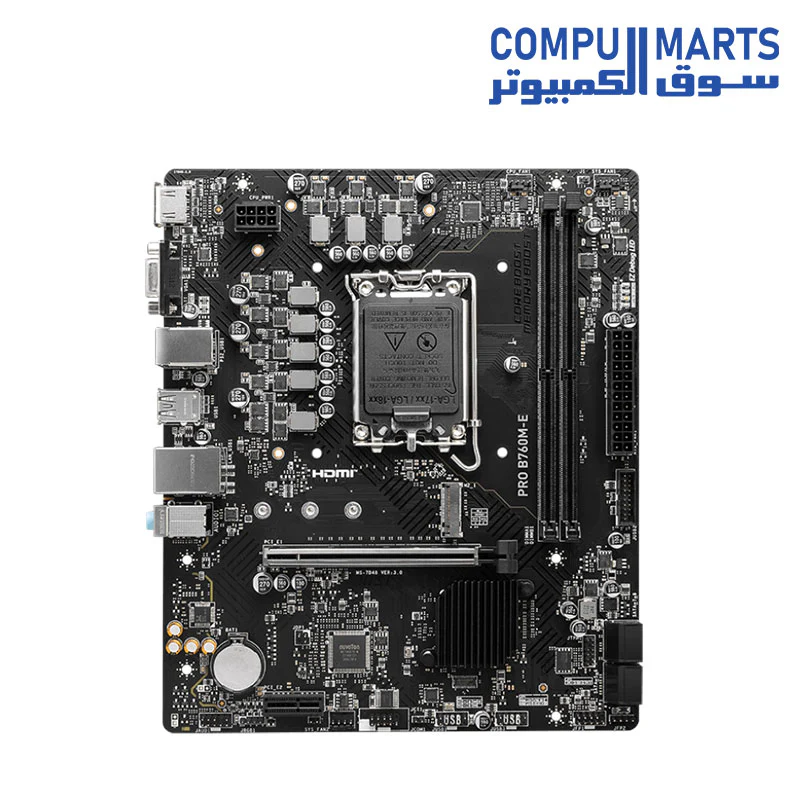

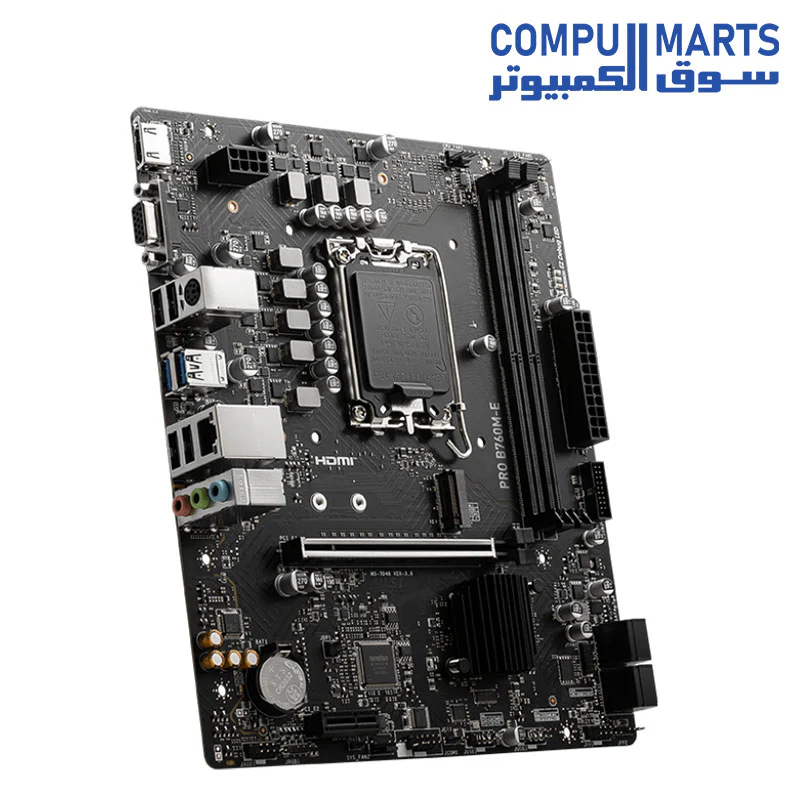

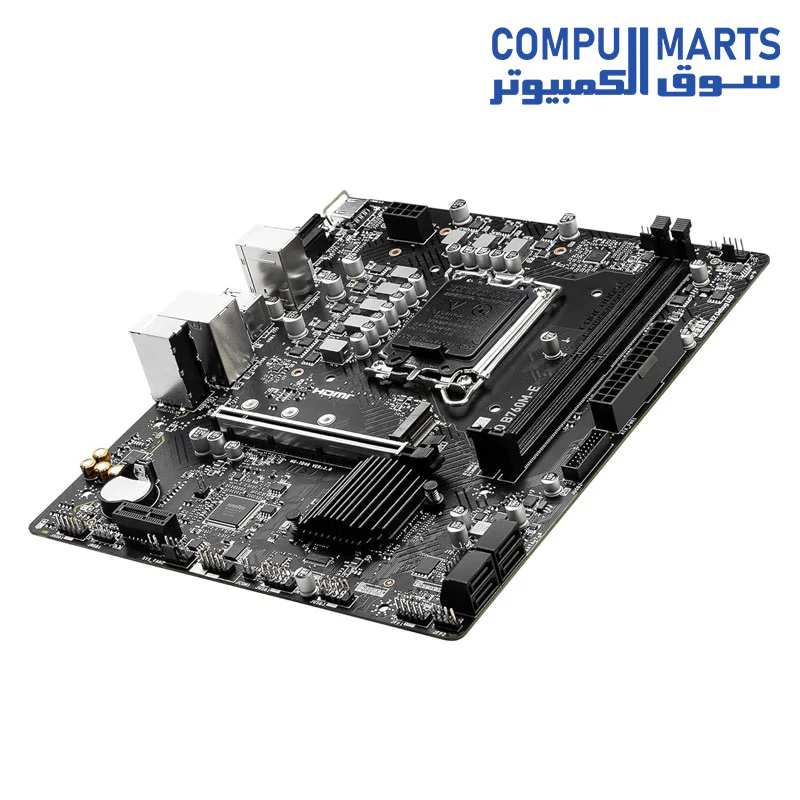

MSI PRO B760M-E Motherboard

MSI PRO B760M-E Motherboard

Category Specification Details
Product MSI PRO B760M-E Motherboard
Chipset INTEL B760
CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 128GB; Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Supports Intel XMP 3.0 OC; Dual-Channel mode; non-ECC, un-buffered
Onboard Graphics 1x HDMI (Support HDMI 1.4 with HDR, max 4K 30Hz); 1x VGA (max 2048x1536 50Hz / 1920x1200 60Hz)
Expansion Slots 1x PCI-E x16 slot (Gen PCIe 4.0 from CPU); 1x PCI-E x1 slot (Gen PCIe 3.0 from Chipset)
Storage 1x M.2 (From Chipset, up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242); 4x SATA 6G (SATA5 unavailable when M.2 SATA SSD is used)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Ports Rear: 2x USB 5Gbps Type A, 4x USB 2.0; Front: 2x USB 5Gbps Type A, 4x USB 2.0
LAN Realtek RTL8111H Gigabit LAN
Audio Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Internal IO 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x RGB LED, 1x TPM 2.0 pin header, 4x USB 2.0 ports, 2x USB 5Gbps Type A ports
LED Feature 4x EZ Debug LED
Back Panel Ports HDMI, VGA, Keyboard / Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio Connectors, USB 2.0
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
Form Factor mATX (200mm x 236.16mm)
Box Content N/A
$88.75
MSI PRO B760M-E Motherboard—
$88.75
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Description

Category Specification Details
Product MSI PRO B760M-E Motherboard
Chipset INTEL B760
CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 128GB; Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Supports Intel XMP 3.0 OC; Dual-Channel mode; non-ECC, un-buffered
Onboard Graphics 1x HDMI (Support HDMI 1.4 with HDR, max 4K 30Hz); 1x VGA (max 2048x1536 50Hz / 1920x1200 60Hz)
Expansion Slots 1x PCI-E x16 slot (Gen PCIe 4.0 from CPU); 1x PCI-E x1 slot (Gen PCIe 3.0 from Chipset)
Storage 1x M.2 (From Chipset, up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242); 4x SATA 6G (SATA5 unavailable when M.2 SATA SSD is used)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB Ports Rear: 2x USB 5Gbps Type A, 4x USB 2.0; Front: 2x USB 5Gbps Type A, 4x USB 2.0
LAN Realtek RTL8111H Gigabit LAN
Audio Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Internal IO 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x RGB LED, 1x TPM 2.0 pin header, 4x USB 2.0 ports, 2x USB 5Gbps Type A ports
LED Feature 4x EZ Debug LED
Back Panel Ports HDMI, VGA, Keyboard / Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio Connectors, USB 2.0
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
Form Factor mATX (200mm x 236.16mm)
Box Content N/A
