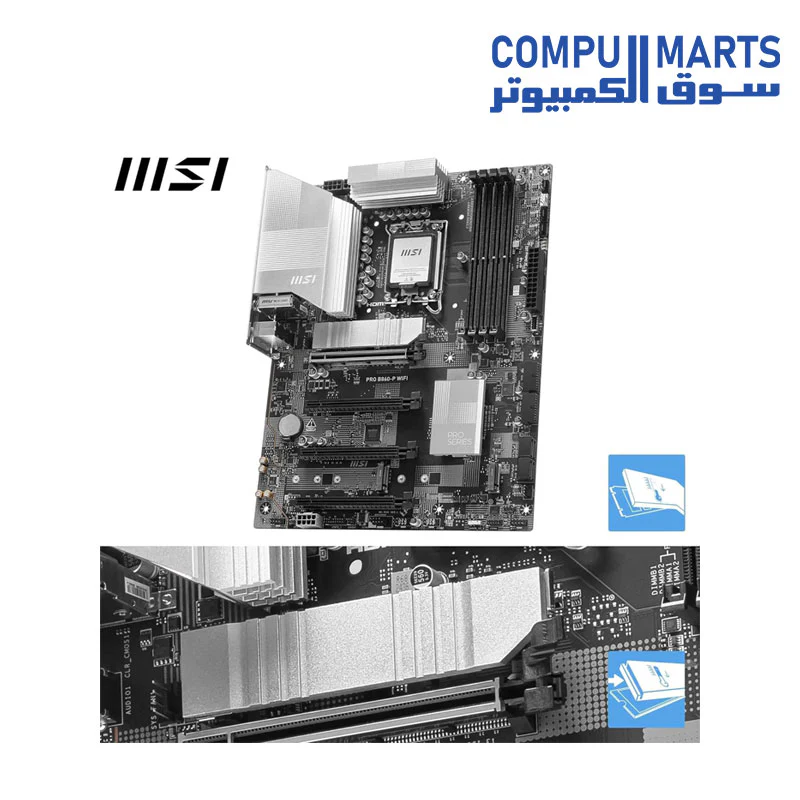

MSI Pro B860-P WiFi Motherboard
| Category | Specification Details |
|---|---|
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 Socket |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 8800+ MT/s (OC) | Dual-Channel, XMP 3.0, CUDIMM Support |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Thunderbolt™ 4 (DP 2.1, 8K 60Hz) |
| Storage | 3x M.2 Slots (1x Gen5 x4, 2x Gen4 x4/x2) | 4x SATA 6G | Supports RAID 0, 1, 5, 10 |
| Thunderbolt™ | 1x Rear Thunderbolt™ 4 (40Gbps, 15W PD, Daisy-chain support) | 1x Internal Thunderbolt 5 connector |
| USB Ports | Rear: 1x TB4 Type-C, 2x USB 10Gbps, 2x USB 5Gbps, 4x USB 2.0 | Front: 1x Type-C 10Gbps, 4x 5Gbps, 4x 2.0 |
| Networking | Realtek® 5Gbps LAN | Intel® Wi-Fi 7 | Bluetooth® 5.4 |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Form Factor | ATX (243.84mm x 304.8mm) |

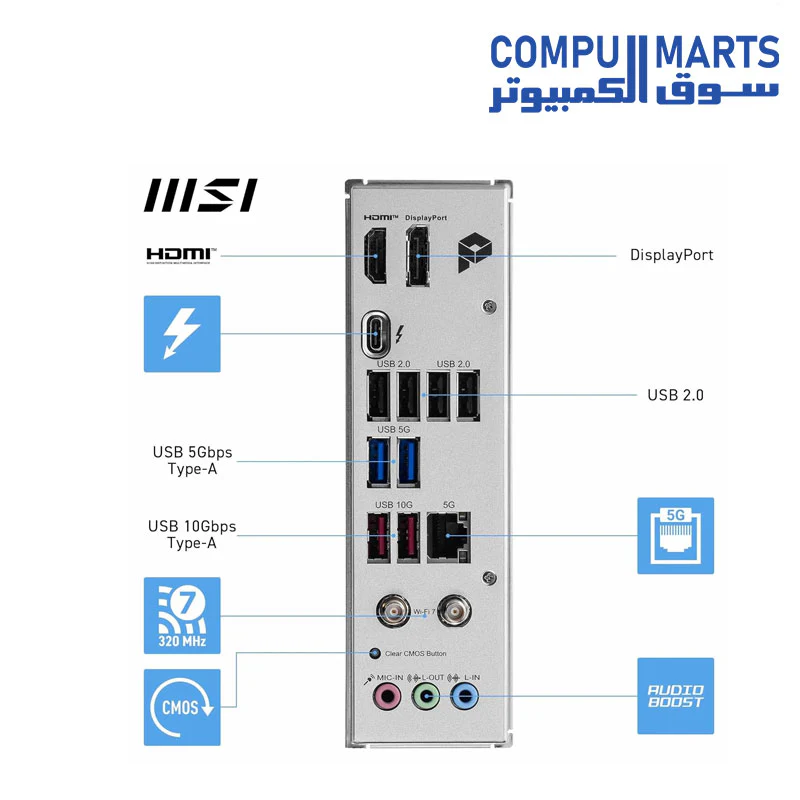

| Back Panel | HDMI, DP, TB4, 5G LAN, Wi-Fi 7, Clear CMOS, USB 10Gbps/5Gbps/2.0 |
$209.95
MSI Pro B860-P WiFi Motherboard—
$209.95
Description
| Category | Specification Details |
|---|---|
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 Socket |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports up to 8800+ MT/s (OC) | Dual-Channel, XMP 3.0, CUDIMM Support |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Thunderbolt™ 4 (DP 2.1, 8K 60Hz) |
| Storage | 3x M.2 Slots (1x Gen5 x4, 2x Gen4 x4/x2) | 4x SATA 6G | Supports RAID 0, 1, 5, 10 |
| Thunderbolt™ | 1x Rear Thunderbolt™ 4 (40Gbps, 15W PD, Daisy-chain support) | 1x Internal Thunderbolt 5 connector |
| USB Ports | Rear: 1x TB4 Type-C, 2x USB 10Gbps, 2x USB 5Gbps, 4x USB 2.0 | Front: 1x Type-C 10Gbps, 4x 5Gbps, 4x 2.0 |
| Networking | Realtek® 5Gbps LAN | Intel® Wi-Fi 7 | Bluetooth® 5.4 |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Back Panel | HDMI, DP, TB4, 5G LAN, Wi-Fi 7, Clear CMOS, USB 10Gbps/5Gbps/2.0 |
